Duf89 abets lncRNA control of fission yeast phosphate homeostasis via its antagonism of precocious lncRNA transcription termination

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 14.
FIGURE 14.

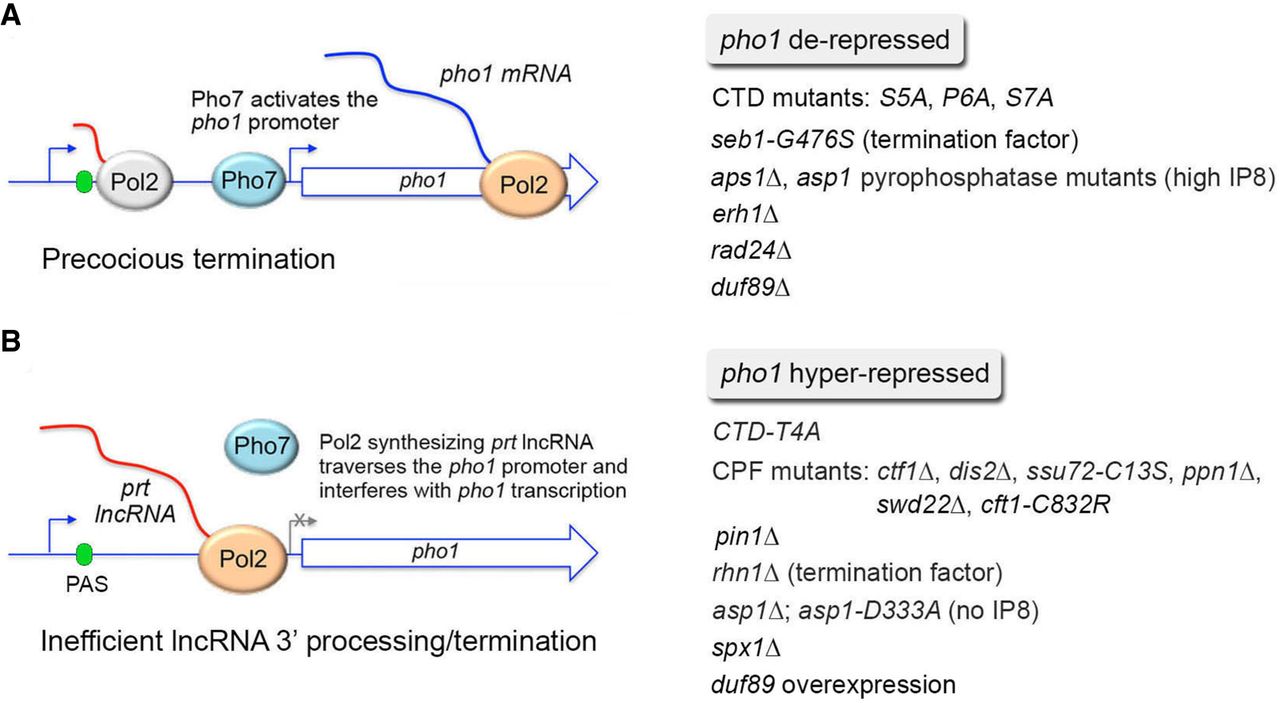

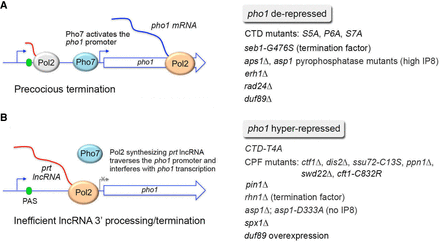

lncRNA control of Pho1 expression is tunable by genetic maneuvers affecting 3′-processing/termination. prt lncRNA synthesis represses pho1 mRNA transcription in phosphate-replete conditions. States of pho1 derepression (A) and hyperrepression (B) at the prt-pho1 locus are achieved by changes in prt lncRNA 3′-processing/termination efficiency. The genetic perturbations that elicit these effects are indicated on the right.
