A selective and sensitive detection system for 4-thiouridine modification in RNA

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 6.
FIGURE 6.

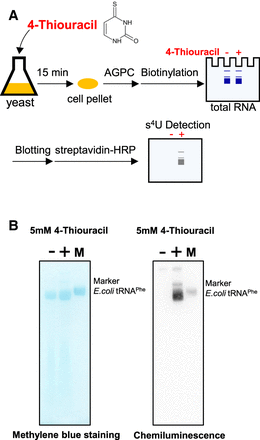

(A) Schematic drawing of detection of newly transcribed RNAs in S. cerevisiae cells by the MTSEA biotin-XX detection system. (B) Total RNAs from the samples without addition of s4U (left lane)- and with addition of s4U (right lane) were separated by 10% PAGE (7 M urea). The gel was stained with methylene blue. 4-Thiouridine in total RNAs was detected by the MTSEA biotin-XX system.
