A selective and sensitive detection system for 4-thiouridine modification in RNA

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

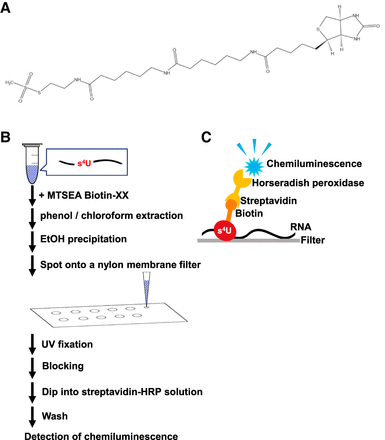

FIGURE 1.
FIGURE 1.

(A) Structure of MTSEA biotin-XX. (B) Outline of MTSEA biotin-XX s4U detection system. RNA containing s4U is reacted with MTSEA biotin-XX and fixed onto a nylon membrane filter. Streptavidin-HRP captures the biotin in the sample. The activity of HRP is detected by chemiluminescence. Details are described in the main text and the Material and Methods section. (C) Schematic drawing of MTSEA biotin-XX s4U detection system.

This Article

  1. Published in Advance November 21, 2022, doi: 10.1261/rna.079445.122 RNA 29: 241-251
