A highly efficient human cell-free translation system

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

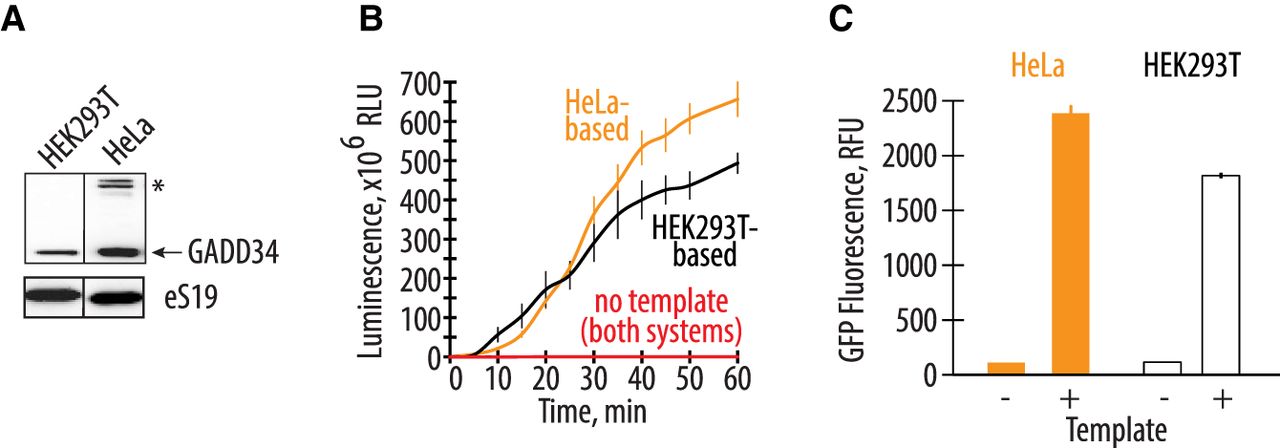

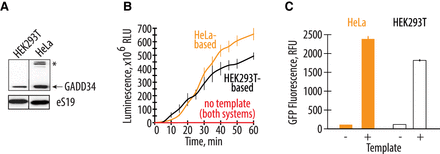

FIGURE 2.
FIGURE 2.

Endogenously expressed GADD34Δ and K3L increase translational activity comparable to the addition of exogenously expressed accessory proteins. (A) Western blot showing the amount of the GADD34Δ expressed in the engineered HEK293T cells and supplemented in the HeLa-based commercial translation system. The asterisk indicates a nonspecific band in the HeLa extract. The gel is representative of two independent experiments. (B) A time course of nLuc synthesis in the CFPS systems prepared based on the engineered HEK293T cell extract and HeLa-based extract with recombinant GADD34Δ and K3L supplement. All error bars represent one standard deviation of three independent replicates. (C) Cell-free synthesis of GFP in the two translation systems. Orange bars represent the HeLa-based extract with exogenous GADD34Δ and K3L added, while the white bars represent the engineered HEK293T cell extract with endogenously expressed GADD34Δ and K3L proteins. All error bars represent one standard deviation of three independent replicates.
