Quantification of elongation stalls and impact on gene expression in yeast

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 3.
FIGURE 3.

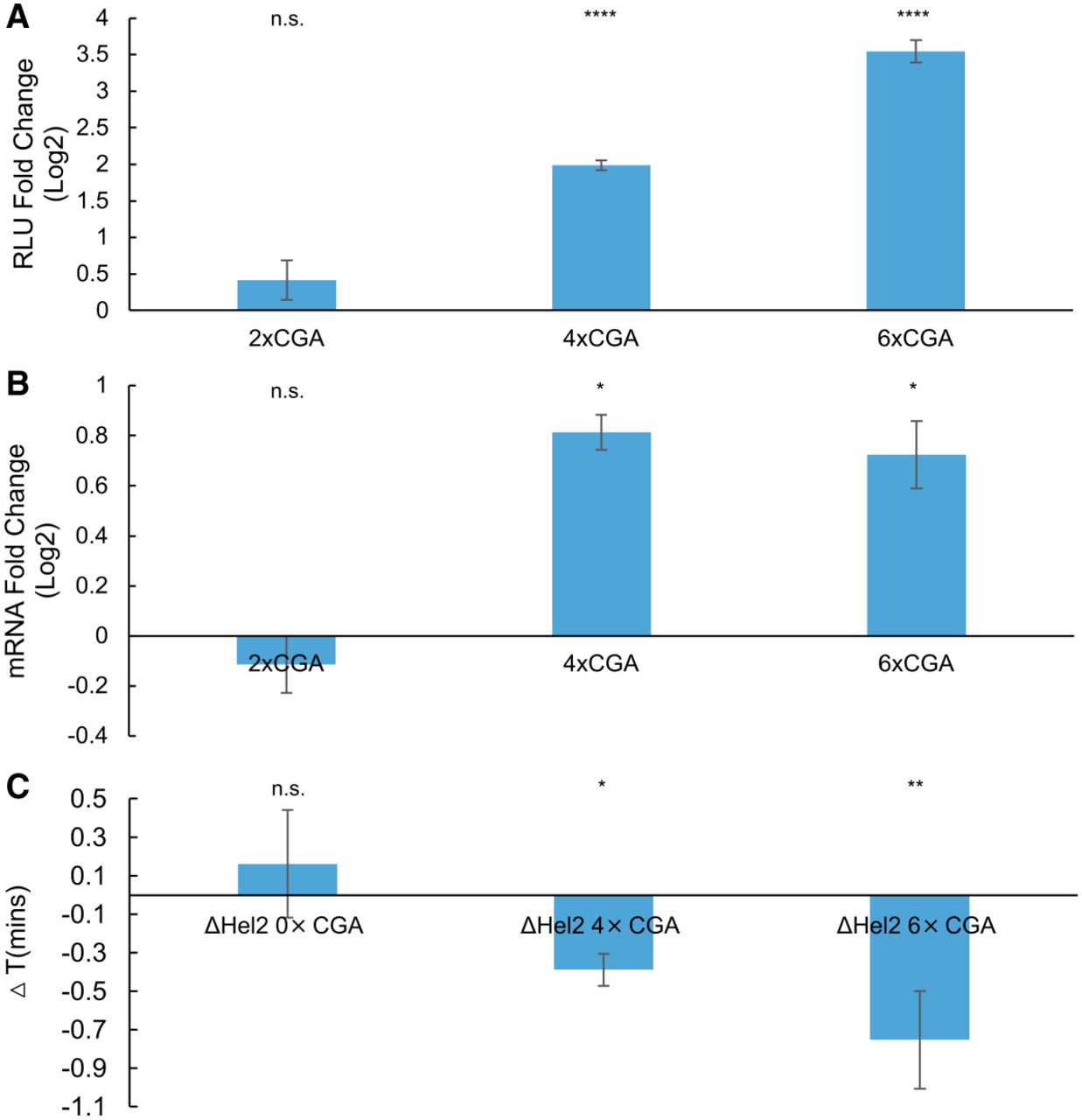

Hel2 deletion rescues protein expression, mRNA levels, and elongation time. (A) Protein expression fold change of CGA constructs in a hel2Δ versus WT background (2×CGA n = 2, 4×CGA n = 7, 6×CGA n = 7). (B) mRNA level fold change of CGA constructs in a hel2Δ versus WT background (n = 3). (C) Elongation delay of CGA constructs in a hel2Δ versus WT background (n = 3). All error bars indicate SEM. All statistical significances were calculated for each construct using two-tailed paired Student's t-test against WT control.

This Article

  1. RNA 29: 1928-1938
