Multiple domains of the integral KREPA3 protein are critical for the structure and precise functions of RNA editing catalytic complexes in Trypanosoma brucei

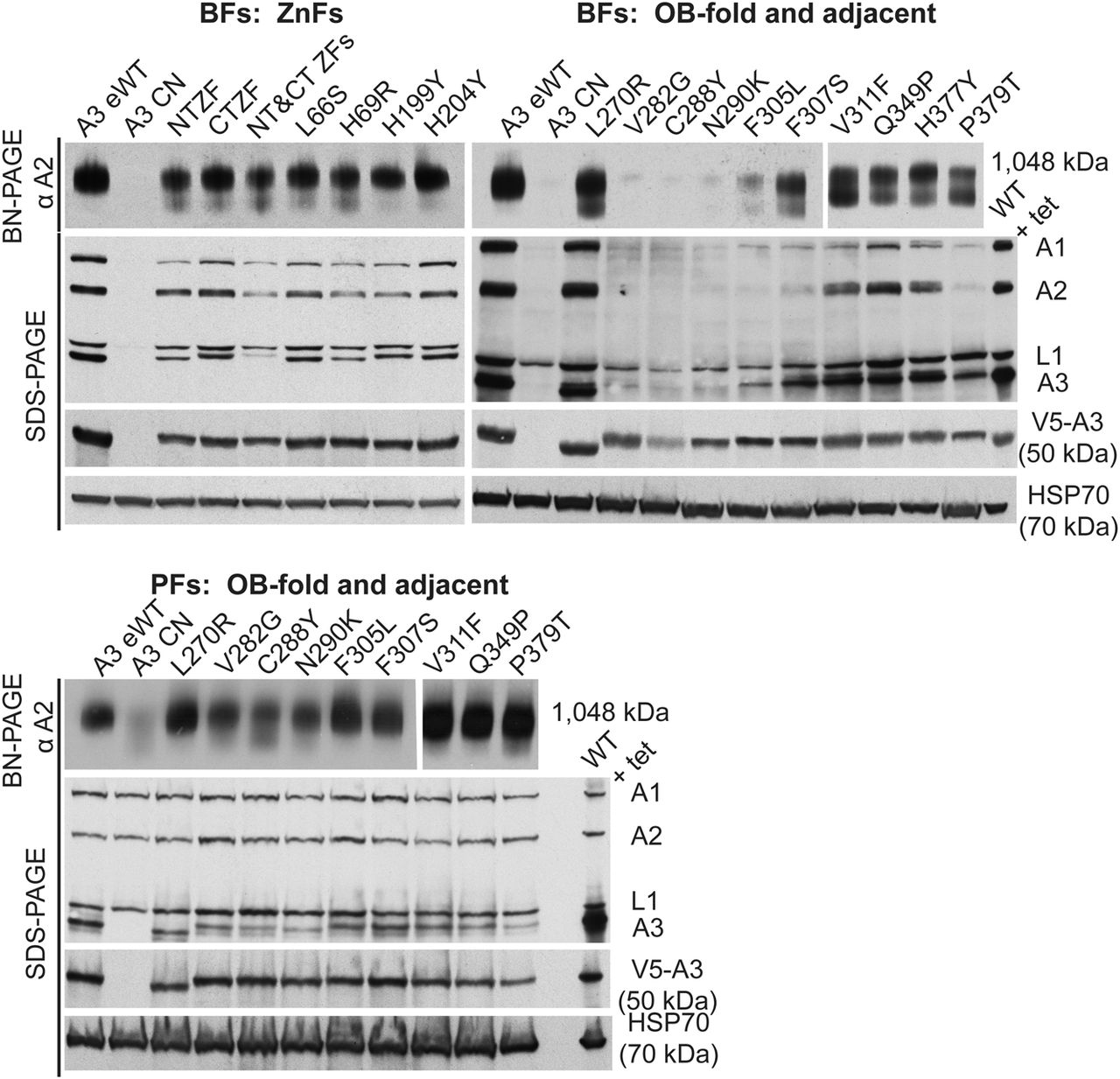

Effects of A3 mutations on catalytic complexes. Western analyses of blots analyzing cleared cell lysates after either 48 h (BF) or 96 h (PF) of exclusive expression of either mutated, wild-type, or no A3 (CN) using BN-PAGE (upper panel) and denaturing PAGE (lower panels). The BN-PAGE blots were probed with a mAb for A2 which is present in all CCs; the denaturing PAGE blots were probed with a mAb mixture for four CC proteins or mAbs for the V5 tag on A3, or the HSP70 loading control. Note the greater effect on the CCs in BF (upper) versus the PF (lower). Western blots shown represent at least two biological replicates.
