Autorecoding A-to-I RNA editing sites in the Adar gene underwent compensatory gains and losses in major insect clades

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

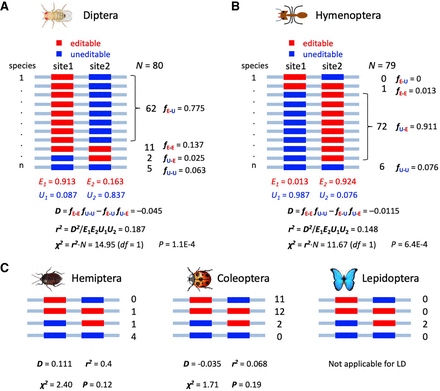

FIGURE 3.
FIGURE 3.

LD between the two autorecoding sites in the Adar gene. (A) Diptera. (B) Hymenoptera. (C) Hemiptera, Coleoptera, and Lepidoptera. The editable codons are colored in red. The uneditable codons are colored in blue. The D, r2, and P-values of LD are shown. Under P < 0.05, a positive D-value means that the two editable codons are mutually favored, and a negative D-value means that the two editable codons are mutually exclusive.

This Article

  1. Published in Advance July 14, 2023, doi: 10.1261/rna.079682.123 RNA 29: 1509-1519
