The DUF3715 domain has a conserved role in RNA-directed transposon silencing

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

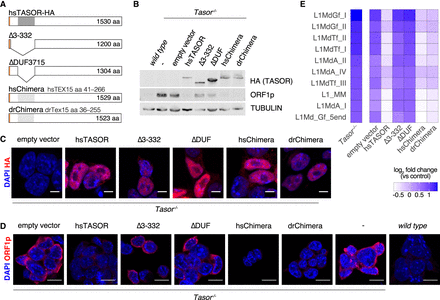

FIGURE 3.
FIGURE 3.

The TEX15 DUF3715 domain can functionally substitute TASOR's DUF3715 domain and mediate transposon silencing. (A) Schematic representation of human TASOR variants expressed in Tasor−/− ESCs. All proteins contain an amino-terminal HA tag. (B) Representative image of western blot of mESC lysates from wild-type and Tasor−/−, with or without reconstitution as indicated (n = 2). (C,D) Representative immunofluorescence (IF) images of wild-type and Tasor−/− with or without reconstitution as indicated (n = 2). DNA was stained with DAPI. (C) mESCs stained for HA (TASOR). Scale bars indicate 10 µm. (D) mESCs stained for LINE1 ORF1p. Scale bars indicate 5 µm. (E) Data were acquired by RNA-seq from mESCs. Comparison of transposon expression between control and Tasor−/− with or without reconstitution as indicated (n = 2). Heat map shows the fold change of the 10 most up-regulated LINE1s in Tasor−/− (P < 0.01, Benjamini–Hochberg adjusted two-sided Wald test).

This Article

  1. RNA 29: 1471-1480
