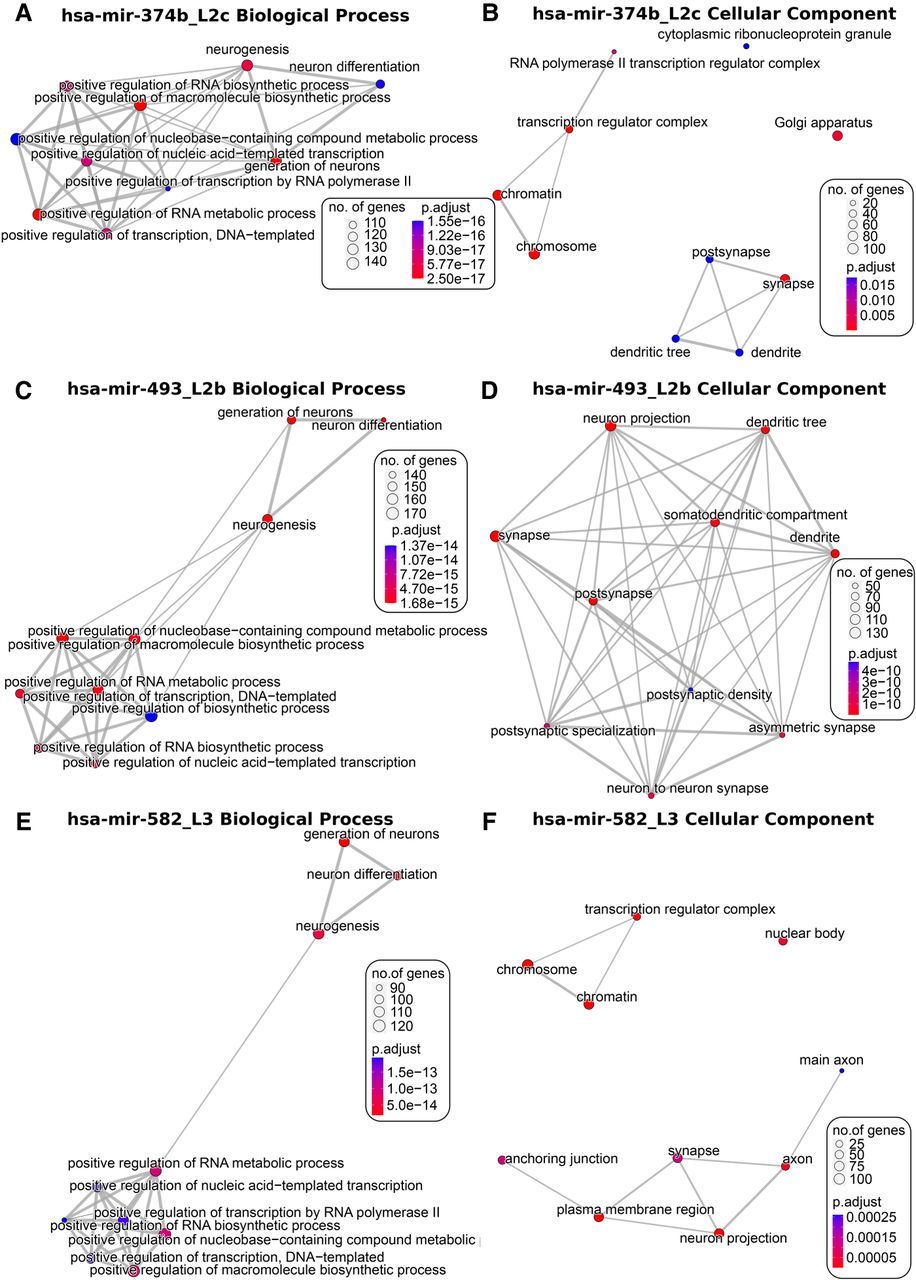

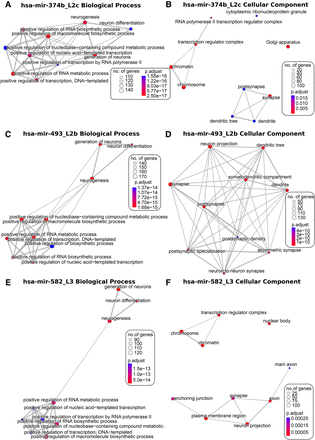

FIGURE 4.
TE-embedded miRNA predicted targets are enriched in neurogenesis and other diverse gene ontology terms. ClusterProfiler emap network plots showing the top 10 enriched biological process (A,C,E) and cellular component (B,D,F) GO terms for specific TE-embedded miRNAs. The number of genes associated with each term is shown by point size and the adjusted P-value as the indicated color. Edges connect overlapping gene sets which cluster together, indicating the relatedness of terms. See also Supplemental Table S7 for GO enrichment from Panther DB.
