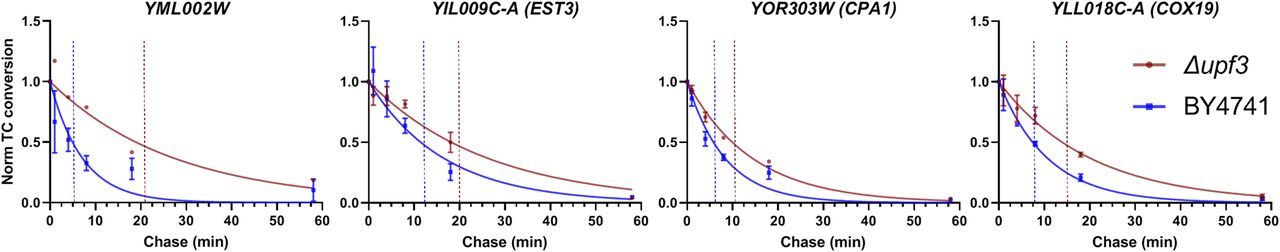

FIGURE 3.
Transcripts representing common structural classes known to be regulated by NMD. Background subtracted and chase onset normalized T-to-C conversion rates were fitted to first order exponential decay. YML002W: nonsense codon-containing in this strain background. EST3: translational frame-shifting. CPA1: uORF-containing. COX19: long 3′-UTR. Error bars represent the standard deviation. Error bars for YML002 in upf3Δ were not added since it was calculated from two replicates.
