The universally conserved nucleotides of the small subunit ribosomal RNAs

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

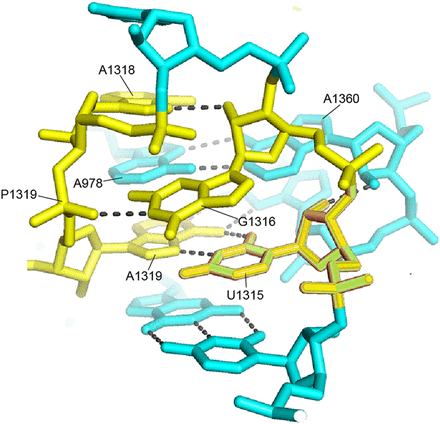

FIGURE 23.
FIGURE 23.

A network of universals in cluster 1. Four invariant nucleotides form a network around the noncanonical A1319–U1315 reverse Hoogsteen pair and the A978–A1360 type V A–A pair in the hairpin loop of helix h42. Note that the bases are virtually inaccessible inside the network, which is remote from any known functional site.

This Article

  1. Published in Advance February 3, 2022, doi: 10.1261/rna.079019.121 RNA 28: 623-644
