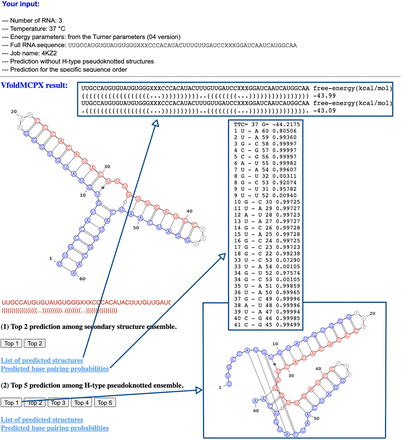

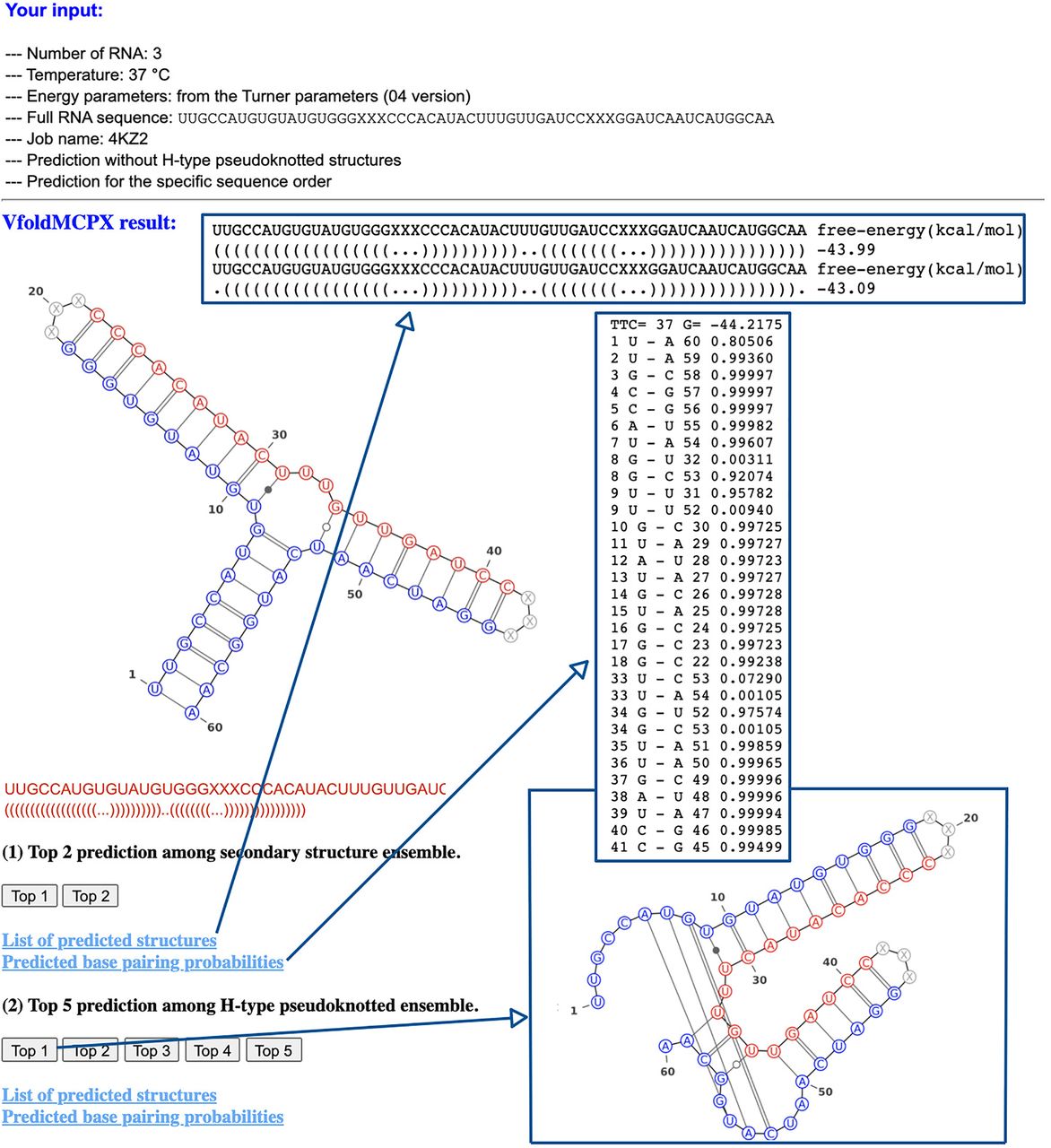

FIGURE 7.
A screenshot of the 2D structure prediction result for phi29 pRNA 3WJ core (PDB 4KZ2) (Zhang et al. 2013), generated by VfoldMCPX web server. The web server displays the job information, the predicted structures, and the links to the downloadable files for the predicted structures and the corresponding base-pairing probabilities. The links and the corresponding files are indicated with arrows and boxes. The results for structures with and without pseudoknots are listed separately.
