VfoldMCPX: predicting multistrand RNA complexes

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 5.
FIGURE 5.

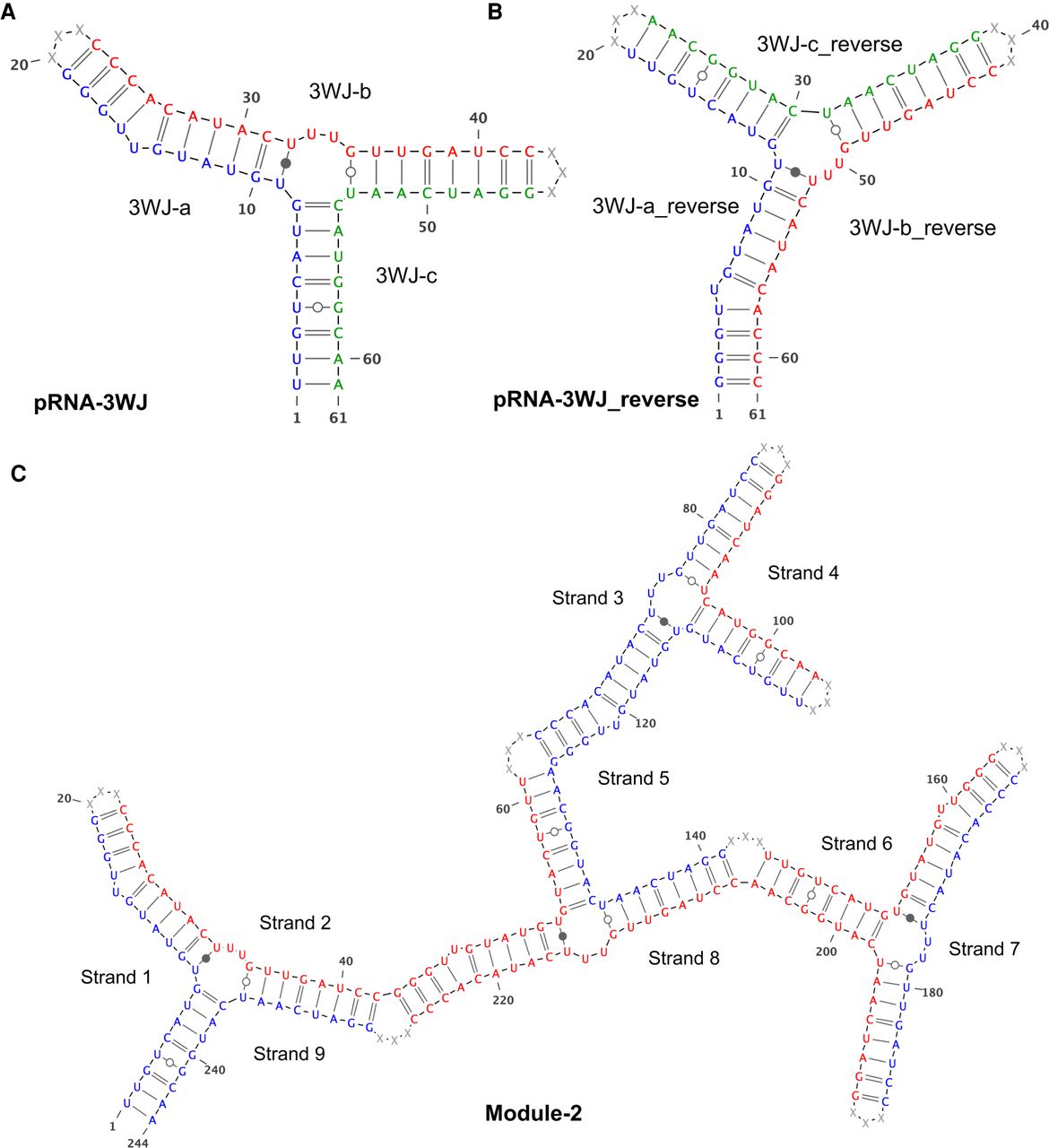

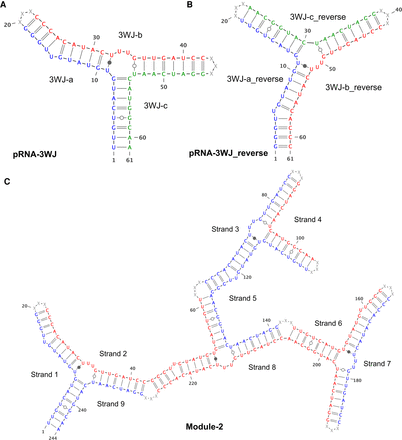

Predicted 2D structures for (A) pRNA-3WJ, (B) pRNA-3WJ_reverse, and (C) “Module-2” agree with the experimentally determined structures (Sharma et al. 2016). (A) The predicted structure for pRNA-3WJ with three RNA strands: 3WJ-a (blue), 3WJ-b (red), and 3WJ-c (green). (B) The predicted structure for pRNA-3WJ_reverse with three RNA strands: 3WJ-a_reverse (blue), 3WJ-b_reverse (red), and 3WJ-c_reverse (green). (C) The predicted structure for “Module-2” with nine RNA strands shown in blue and red.
