Nuclear magnetic resonance reveals a two hairpin equilibrium near the 3′-splice site of influenza A segment 7 mRNA that can be shifted by oligonucleotides

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 5.
FIGURE 5.

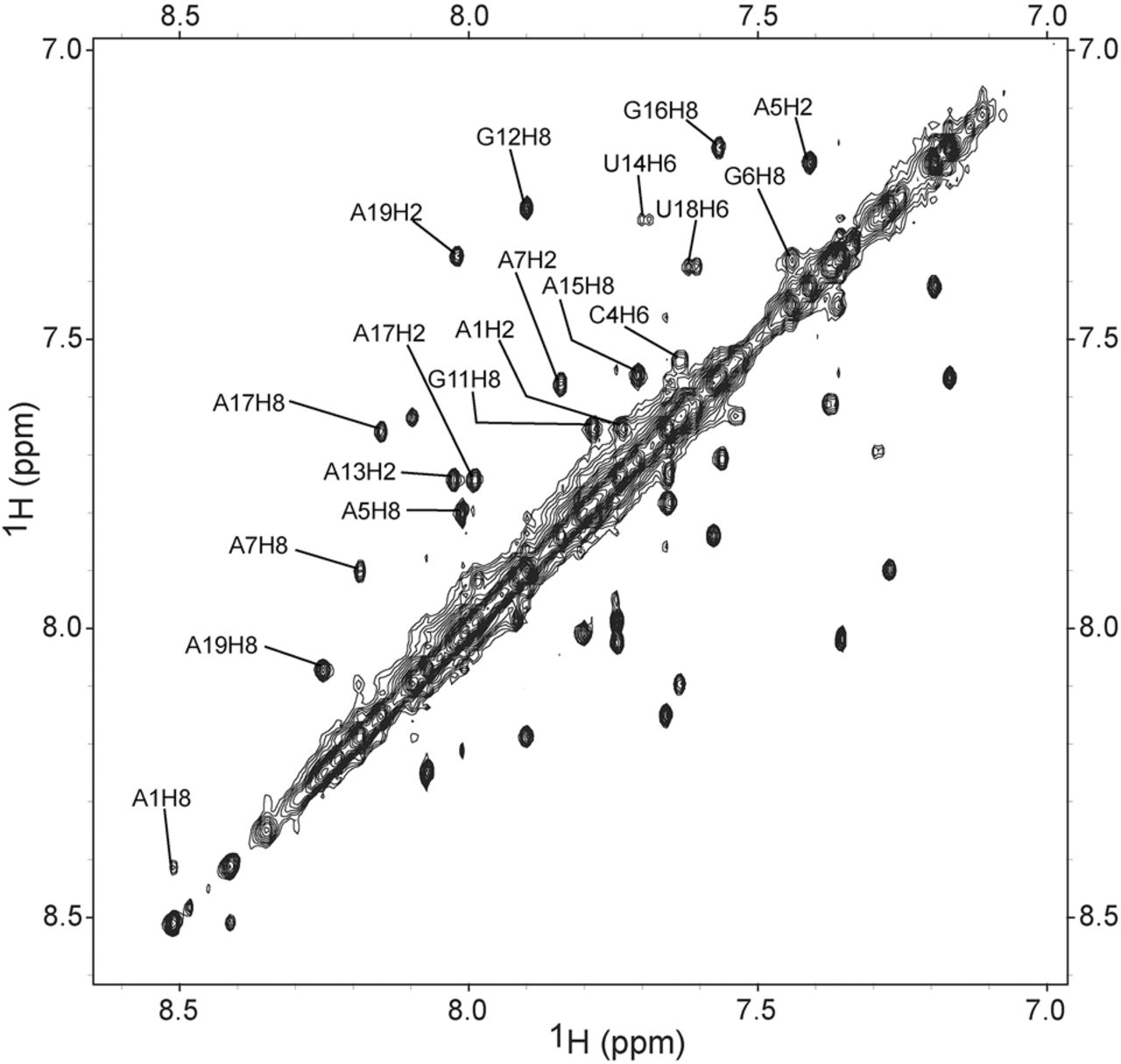

Aromatic region near the diagonal of a 2D TOCSY spectrum of 2.0 mM HP2 showing direct exchange cross-peaks between two conformations, HP2-PK and HP2-HP. Temperature is 20°C and mixing time is 29 msec. Assignment of each chemical shift to HP2-PK or HP2-HP is available in Supplemental Table S2.
