The landscape of translational stall sites in bacteria revealed by monosome and disome profiling

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

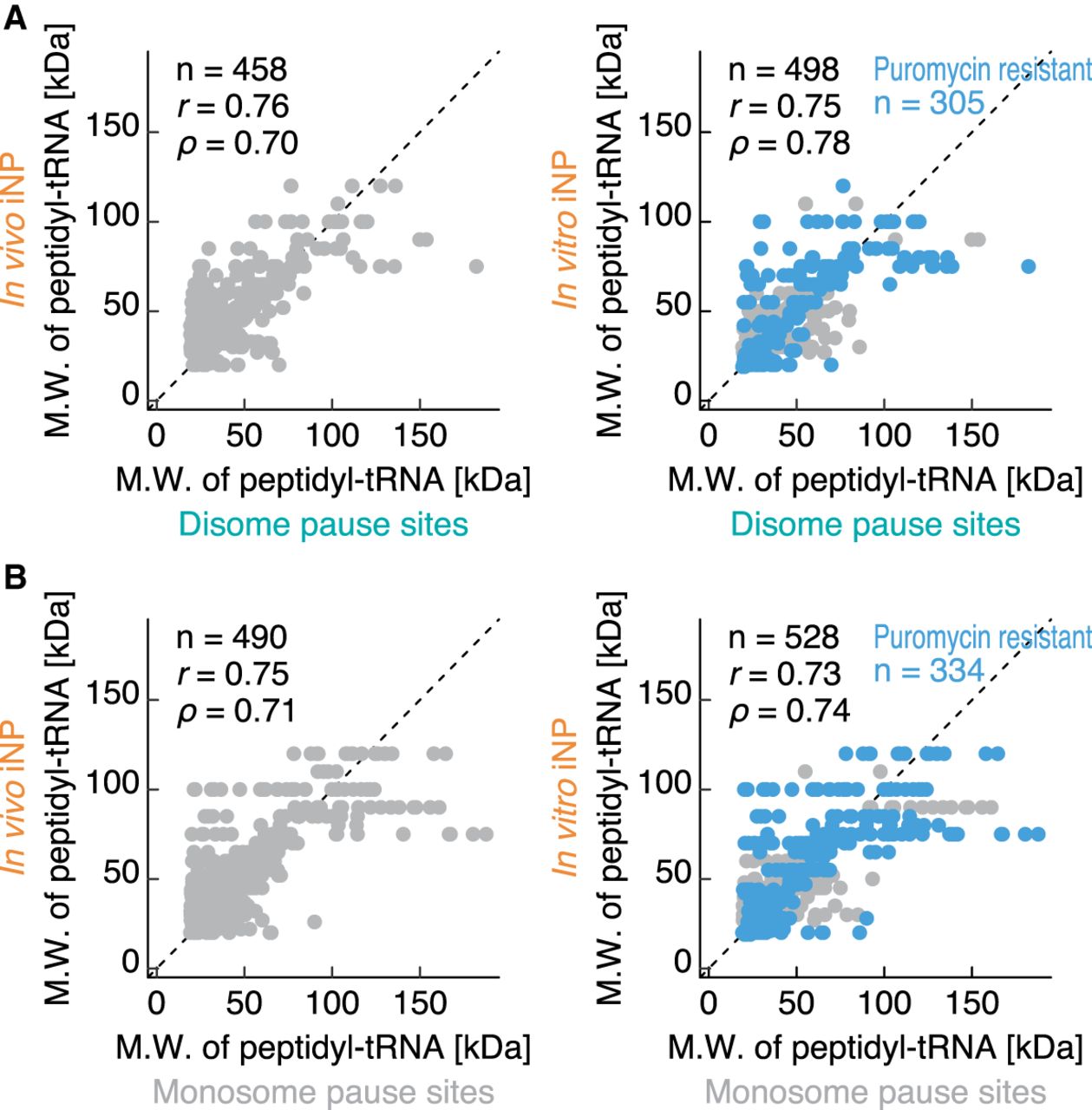

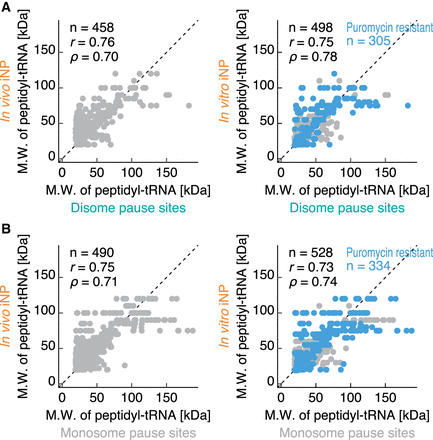

FIGURE 3.
FIGURE 3.

Correspondence between identified pause sites and iNP. (A) Correlation between the molecular weight (M.W.) of polypeptidyl-tRNA predicted by gel migration in in vivo (left) and in vitro (right) iNP (Chadani et al. 2016) and that identified in disome profiling (Fig. 2A). Puromycin-resistant polypeptidyl-tRNAs in in vitro iNP are highlighted in blue. (B) The same as A but for the comparison with monosome pause sites (Fig. 2E).

This Article

  1. Published in Advance December 14, 2021, doi: 10.1261/rna.078188.120 RNA 28: 290-302
