sgDI-tector: defective interfering viral genome bioinformatics for detection of coronavirus subgenomic RNAs

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

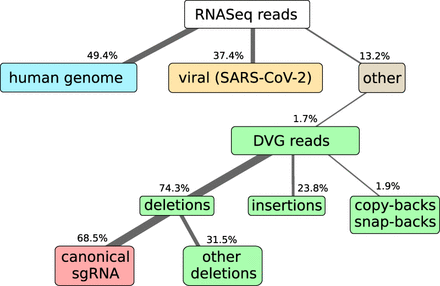

FIGURE 2.
FIGURE 2.

Most of the DVG reads can be associated to canonical sgRNAs. Here we show the results of RNA-seq and alignment of the reads to the human and SARS-CoV-2 genomes. NGS library preparation was performed with a ribodepletion step. The unmapped reads have been further processed with DI-tector, and the resulting characterization of the DVG reads into deletions, insertions and copy-backs/snap-backs is given. The percentage of junction reads corresponding to canonical sgRNA that is standard annotated subgenomic ORFs for SARS-CoV-2 (S, 3A, E, M, 6, 7a, 7b, N, 10), is specified. All percentages are averaged over three biological replicates. Cells colors are given to classify reads in host-related reads (blue), viral reads (yellow), DVG reads (green), canonical sgRNA reads (red), other reads (gray).

This Article

  1. RNA 28: 277-289
