Positive strand RNA viruses differ in the constraints they place on the folding of their negative strand

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

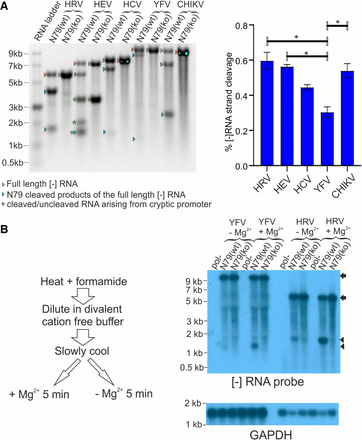

FIGURE 5.
FIGURE 5.

The N79 Rbz is not restricted in its ability to cleave the [−] RNA of positive strand RNA virus constructs when this RNA is in a single-stranded state. (A) Single-stranded [−] RNAs from replicons containing a reverse complemented N79 sequence were generated by in vitro transcription and their cleavage was assessed by gel electrophoresis and image capture. Significant differences between experimental groups are highlighted ([*] P < 0.05; one-way ANOVA; n = 3). (B) RNAs from cells transfected 24 h earlier with YFV or HRV replicons carrying a reverse complemented N79 sequence were collected. They were subsequently subject to treatment designed to release the [−] RNA from its double-stranded state and enable it to fold before Mg2+ was added to activate Rbz activity. Experimental groups lacking Mg2+ addition were included as controls. Cleavage was assessed by northern blot analysis . The arrows represent the position of full length transcripts and arrowheads the position of N79-cleaved product.
