Replication of alphaviruses requires a pseudoknot that involves the poly(A) tail

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 5.
FIGURE 5.

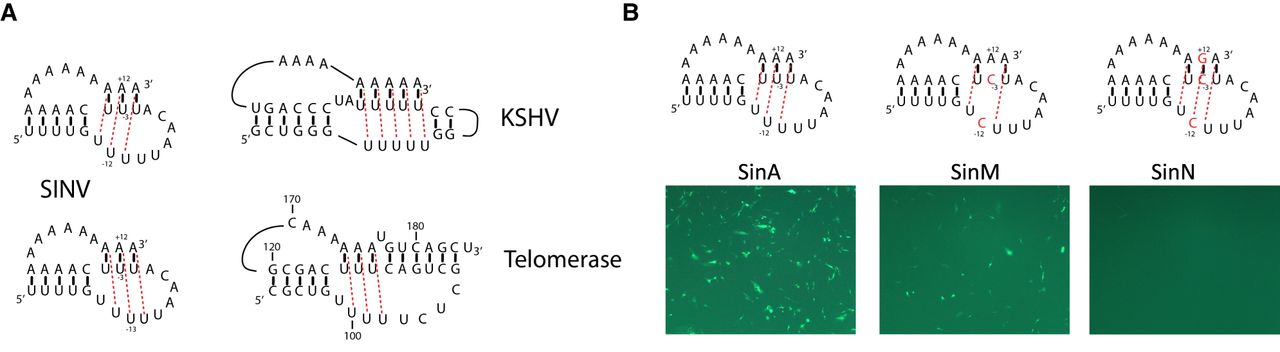

(A) Putative base triples in the SINV pseudoknot, adopting either a KSHV-like conformation (top) or a human telomerase pseudoknot-like conformation (bottom). Red dotted lines indicate Hoogsteen base-pairing of U with an AU base pair. (B) Testing the KSHV-like pseudoknot conformation by mutating a putative base triple between U−3, A+13, and U−12 using the SINV replicon.

This Article

  1. Published in Advance July 29, 2022, doi: 10.1261/rna.079243.122 RNA 28: 1348-1358
