Perturbation of ribosomal subunit dynamics by inhibitors of tRNA translocation

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 8.
FIGURE 8.

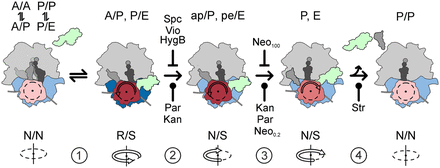

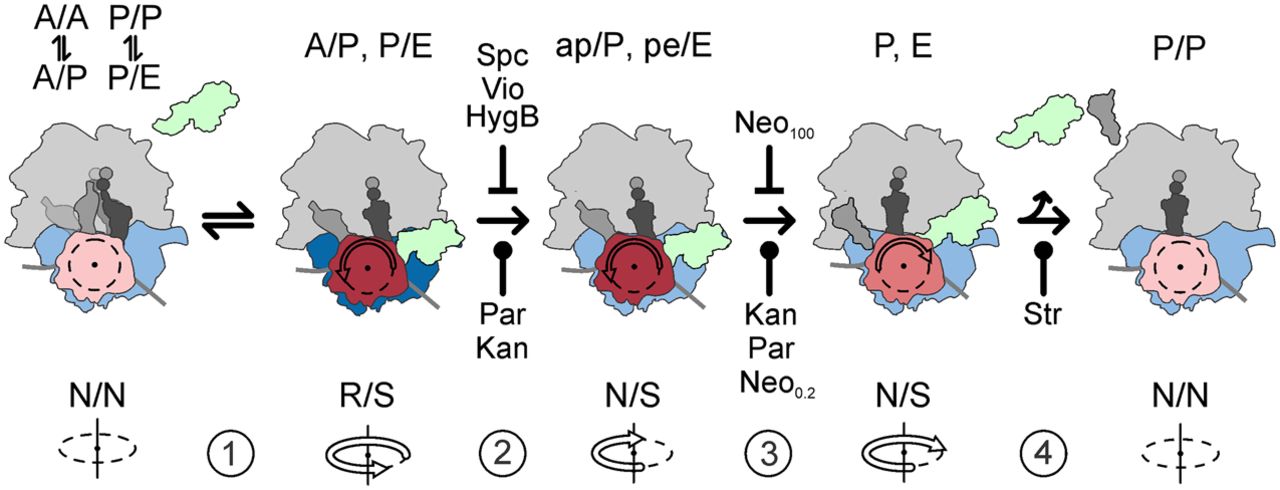

Summary of inhibition mechanisms of antibiotics impairing translocation. The inhibitory step for each antibiotic and the ability to halt (⊥) or slow down (ᛙ) the motions of ribosomal subunits during translocation is indicated. We consider a step as inhibited if it is >300-fold slower than in the absence of antibiotics.

This Article

  1. Published in Advance June 11, 2021, doi: 10.1261/rna.078758.121 RNA 27: 981-990
