Perturbation of ribosomal subunit dynamics by inhibitors of tRNA translocation

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

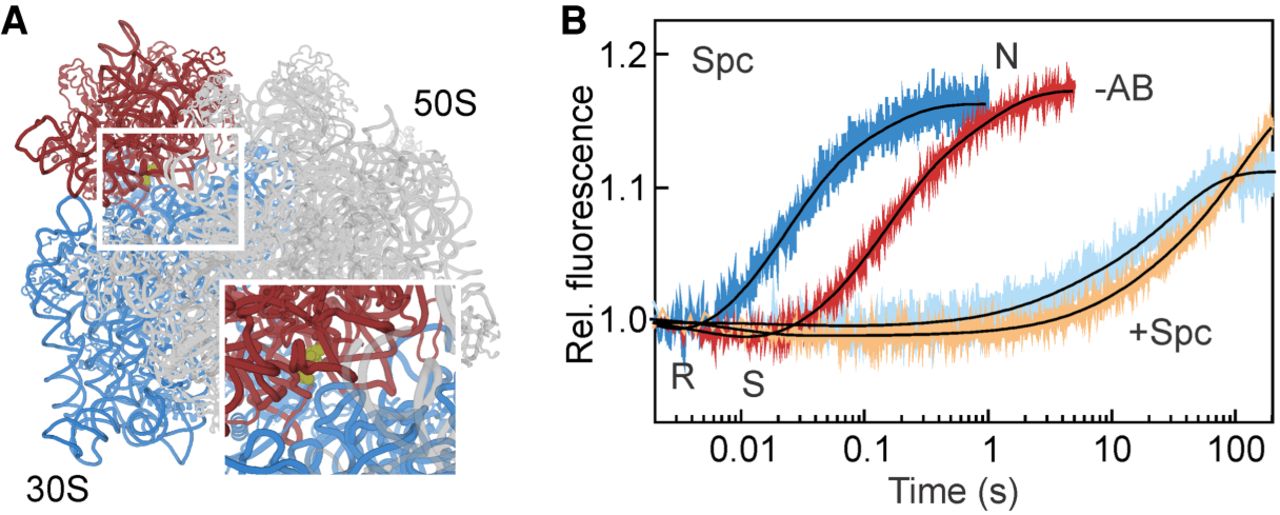

FIGURE 3.
FIGURE 3.

Spc action on ribosome dynamics. (A) Spc binding site on the SSU is indicated in olive. SSU body and head domains are highlighted in blue and red, respectively, LSU in gray. (B) EF-G-dependent body (blue) and head (red) movements in the absence of the antibiotic or in the presence of Spc (lighter blue and orange). Conformations of the SSU body and head domains (N, R, and S) are indicated.

This Article

  1. Published in Advance June 11, 2021, doi: 10.1261/rna.078758.121 RNA 27: 981-990
