Annotation of the local context of RNA secondary structure improves the classification and prediction of A-minors

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 5.
FIGURE 5.

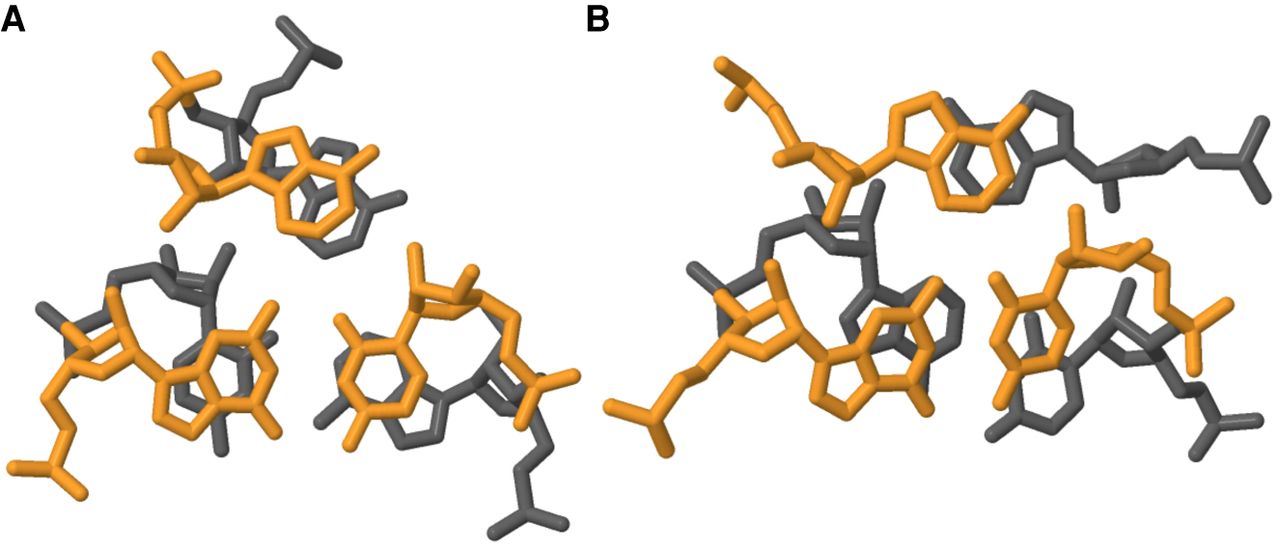

Different A-patch architectures of size (2,2). (A) A-patch formed by a stack of consecutive adenines, SSU rRNA (PDB ID: 6QZP, chain S2, A-minors: A996|C674-[A2M]1031, A997|G673–C1032) (B) A-patch formed by a cross-strand adenine stack, LSU rRNA (PDB ID: 5TBW, chain 1, A-minors: A2696|C2630–G2648, A2758|U2629–A2649).

This Article

  1. Published in Advance May 20, 2021, doi: 10.1261/rna.078535.120 RNA 27: 907-919
