The stem cell–specific protein TRIM71 inhibits maturation and activity of the prodifferentiation miRNA let-7 via two independent molecular mechanisms

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

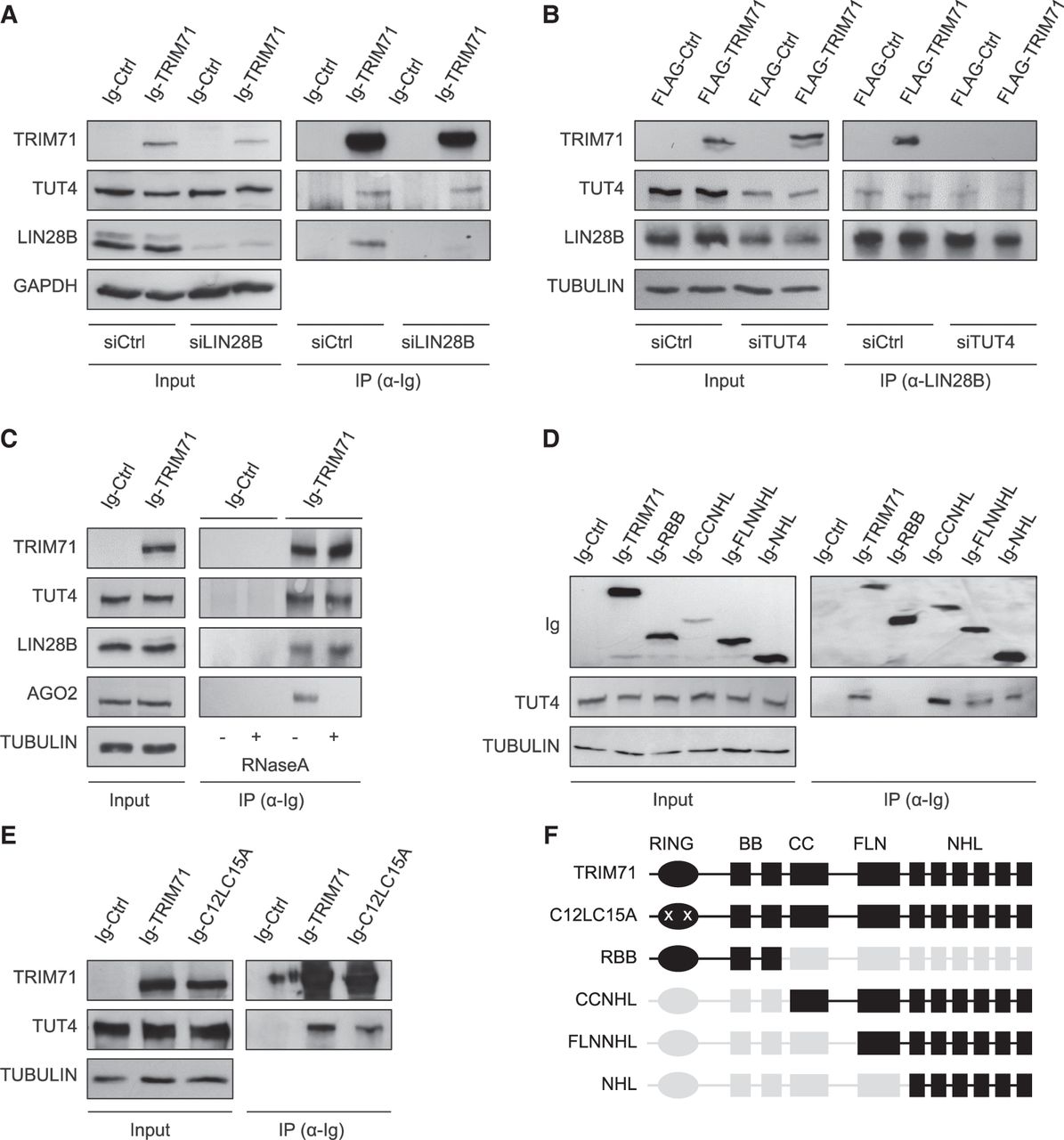

FIGURE 5.
FIGURE 5.

The interaction between TRIM71 and LIN28 is mediated by the uridylating enzyme TUT4. (A) Representative immunoblot showing the coprecipitation of endogenous TUT4 with ectopically expressed Ig-TRIM71 in control HEK293T cells (siCtrl)—which lack LIN28A expression—and upon LIN28B knockdown (siLIN28B). (B) Representative immunoblot showing the coprecipitation of ectopically expressed FLAG-TRIM71 with endogenous LIN28B in control (siCtrl) and TUT4 knockdown (siTUT4) HEK293T cells. (C) Representative immunoblot showing the RNA-independent interaction between TRIM71 and TUT4 or LIN28B. AGO2 was used as a control of an RNA-dependent interaction. (D) Representative immunoblot showing the coprecipitation of endogenous TUT4 with different Ig-tagged TRIM71 constructs in HEK293T cells, depicted in F. (E) Representative immunoblot showing the coprecipitation of endogenous TUT4 with Ig-tagged TRIM71 and C12LC15A overexpressed in HEK293T cells. (F) Schematic representation of TRIM71 constructs used for IP assays in D and E. For each construct, present domains are depicted in black, deleted domains are depicted in gray and mutations are marked with a white “x.” See also Supplemental Figure 8.
