An expanded class of histidine-accepting viral tRNA-like structures

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

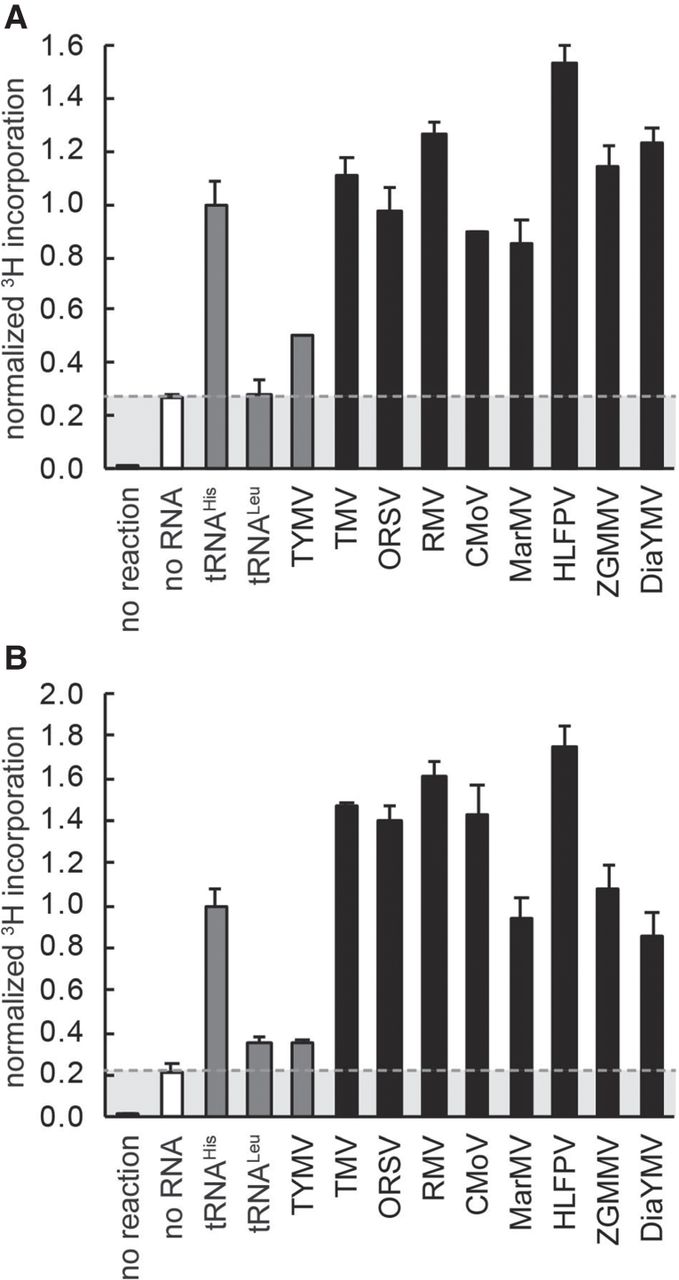

FIGURE 3.
FIGURE 3.

Identified putative viral TLSHis sequences are histidylated in vitro. 3H-L-histidine incorporation of eight representative TLSHis RNAs identified through bioinformatic searches. Histidylation of each RNA, as measured by covalent incorporation of 3H-L-histidine by (A) S. cerevisiae histidine tRNA-synthetase and (B) N. tabacum histidine tRNA-synthetase at the 3′ adenosine, is normalized to yeast tRNAHis RNA. The dashed line and shaded region indicate the background of a reaction containing no RNA. Each reaction was performed in triplicate. Error bars represent one standard error from the mean.
