RNA Peach and Mango: orthogonal two-color fluorogenic aptamers distinguish nearly identical ligands

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

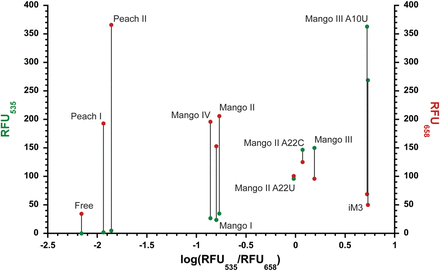

FIGURE 3.
FIGURE 3.

Relative and absolute fluorescence of the Peach and Mango aptamers. Aptamers from the Mango and Peach series (20 nM each) were incubated with 100 nM TO1-B and 200 nM TO3-B. Green dots indicate total fluorescence in the TO1-B channel (RFU535), while red dots indicate total fluorescence in the TO3-B channel (RFU658). Unbound TO1-B and TO3-B brightness is indicated by “Free.”

This Article

  1. Published in Advance March 5, 2021, doi: 10.1261/rna.078493.120 RNA 27: 604-615
