Deflating the RNA Mg2+ bubble: stereochemistry to the rescue!

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 5.
FIGURE 5.

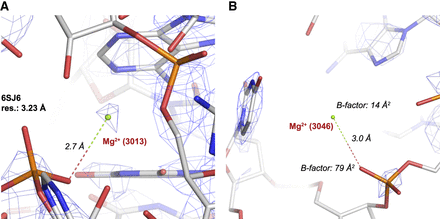

Two examples of improper Mg2+ assignments in the 6SJ6 cryo-EM structure at 3.23 Å resolution (Khusainov et al. 2020). (A) The coordination distance to this ion excludes the presence of Mg2+ and rather suggests the presence of K+. (B) Note the large B-factor discrepancy that further suggests the presence of K+.

This Article

  1. Published in Advance December 2, 2020, doi: 10.1261/rna.076067.120 RNA 27: 243-252
