Hyeonju Jeong; Jungwook Kim

Unique anticodon loop conformation with the flipped-out wobble nucleotide in the crystal structure of unbound tRNA^Val

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

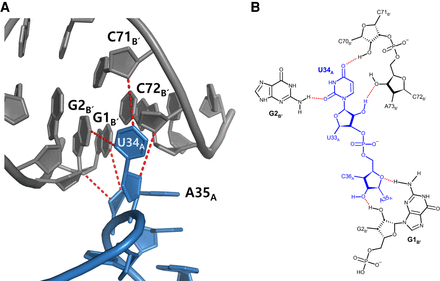

FIGURE 3.

The flipped-out wobble uridine. (A) The protomer containing the flipped-out U34_A (blue) interacts with the nearby symmetry-related molecule (gray) through hydrogen bonds which are depicted as red dots. Protomer B is not shown for clarity. (B) A description of a detailed hydrogen bond interactions at the interface.

This Article

Published in Advance July 27, 2021, doi: 10.1261/rna.078863.121 RNA 2021. 27: 1330-1338
