Transitions between the steps of forward and reverse splicing of group IIC introns

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 2.
FIGURE 2.

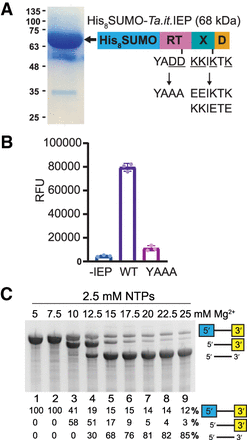

Reconstitution of Ta.it.I1 IEP and precatalytic intron RNA. (A) Schematic representation of the Ta.it.I1 IEP purification construct and SDS-PAGE of purified IEP. Mutations of the IEP used in this study are shown. (B) Fluorescent reverse transcription assay of WT and YAAA mutant IEP. (C) 4% PAGE analysis of Ta.it.I1 intron in vitro transcription products under various [MgCl2].

This Article

  1. Published in Advance March 3, 2020, doi: 10.1261/rna.075044.120 RNA 26: 664-673
