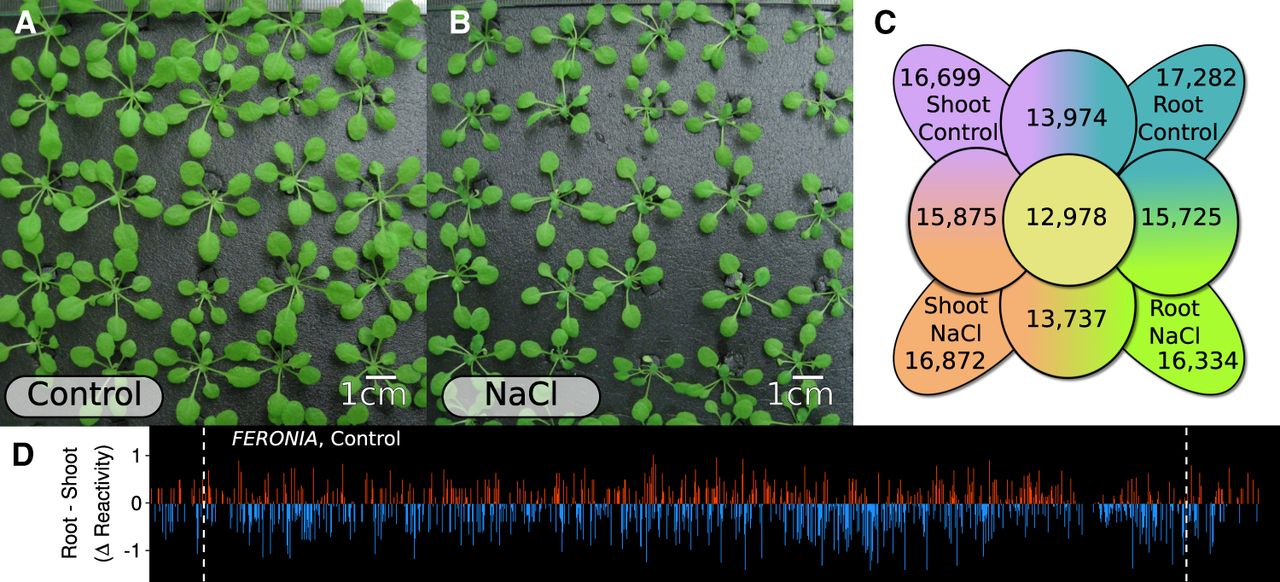

FIGURE 1.
The effect of salt stress on Arabidopsis phenotypes and structurome coverage. (A,B) 24-d-old hydroponically grown Arabidopsis (A) exhibits growth reduction (B) after exposure to 48 h of 100 mM NaCl stress. (C) Total number of transcripts with Structure-seq coverage within and between each tissue and condition surveyed. (D) Differences in reactivity at a single-nucleotide resolution on the transcript of FERONIA (AT3G51550.1) between shoot and root under control conditions. White dashed lines indicate the boundaries of the 5′UTR, CDS, and 3′UTR.
