Ppp1r1b-lncRNA inhibits PRC2 at myogenic regulatory genes to promote cardiac and skeletal muscle development in mouse and human

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 4.
FIGURE 4.

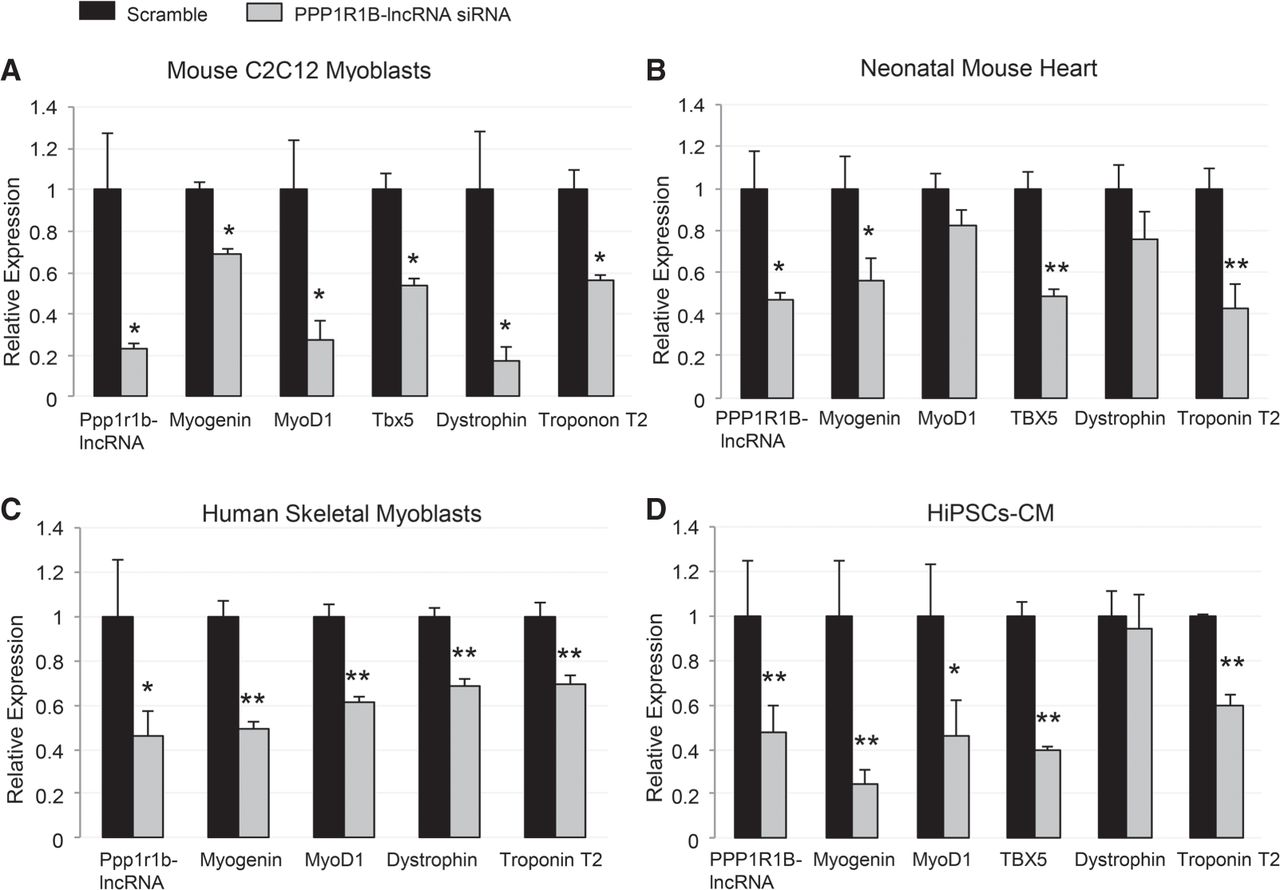

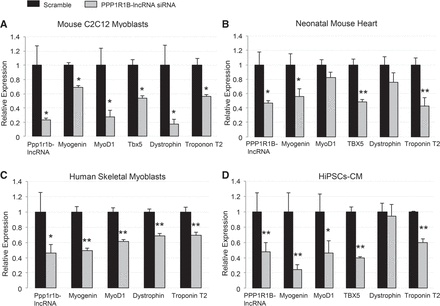

Ppp1r1b-ncRNA regulates expression of myogenic regulatory factors and sarcomere structural genes. Real-time PCR analysis of myogenic regulatory factors and sarcomeric structural genes after Ppp1r1b-lncRNA silencing in Mouse C2C12 myoblasts (A), mouse heart tissue (B), human skeletal myoplasts (C), and human-induced pluripotent stem cell-derived cardiomyocytes (hiPSCs-CM) (D). N = 4 biological replicates per condition. Error bars, standard error of the mean. (*) P < 0.05; (**) P < 0.01.

This Article

  1. RNA 26: 481-491
