Ppp1r1b-lncRNA inhibits PRC2 at myogenic regulatory genes to promote cardiac and skeletal muscle development in mouse and human

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

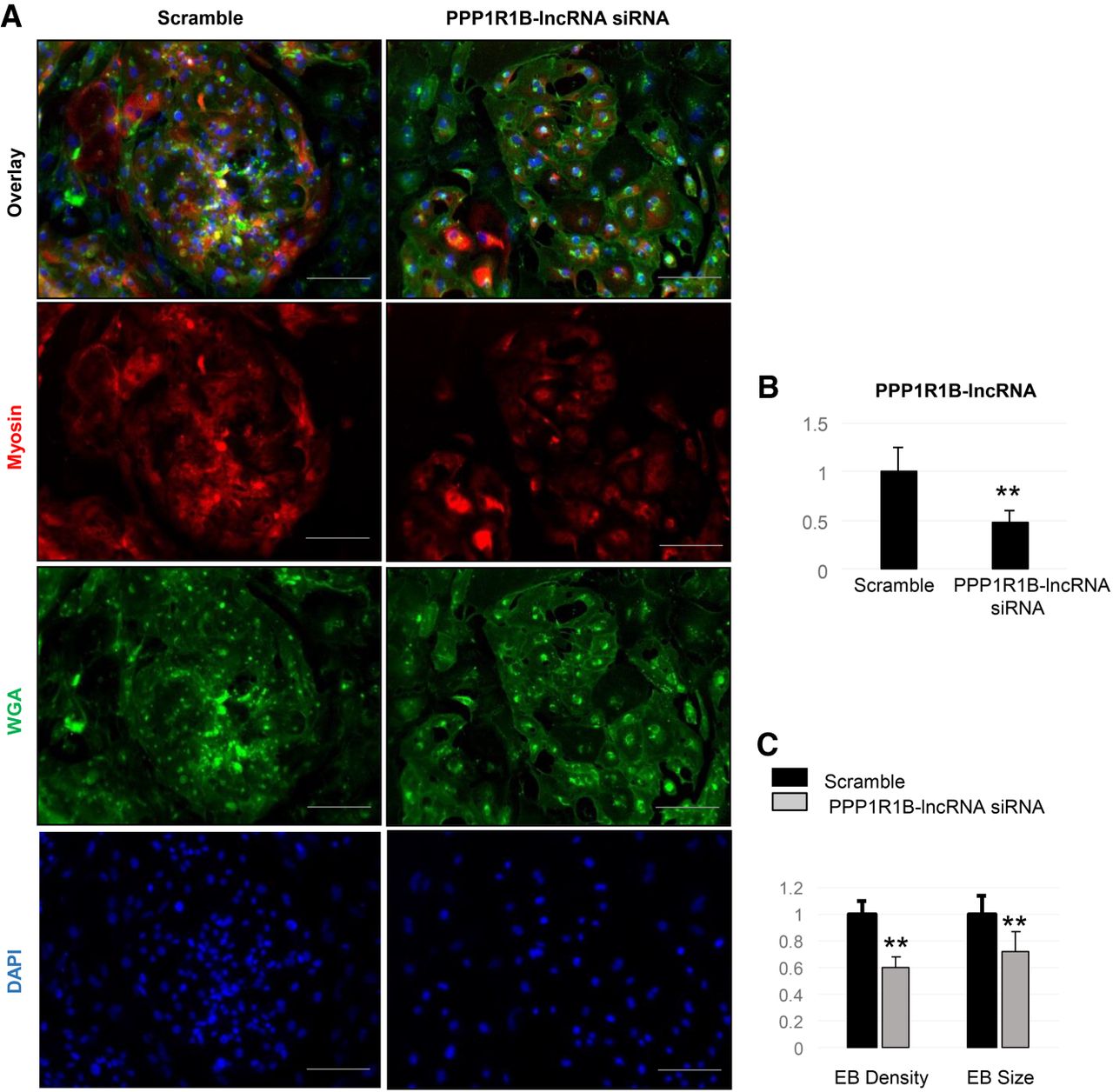

FIGURE 3.
FIGURE 3.

Human PPP1R1B-lncRNA promotes differentiation of human iPSC-derived cardiomyocyte (hiPSC-CM). (A) Microscope images depict the differentiation efficiency of human hiPSC-CM (Myosin positive cells) after PPP1R1B-lncRNA siRNA, or Scramble, treatment. (WGA) Wheat germ agglutinin. Scale bar, 100 µm. (B) Quantitative real-time PCR analysis of PPP1R1B-lncRNA expression after siRNA treatment. (C) Quantitative analysis depicts differentiation efficiency of hiPSC-CMs after siRNA treatment. (EB) Embryonic bodies. N = 4 biological replicates per condition; error bars, standard error of the mean; (*) P < 0.05; (**) P < 0.01.

This Article

  1. RNA 26: 481-491
