Ppp1r1b-lncRNA inhibits PRC2 at myogenic regulatory genes to promote cardiac and skeletal muscle development in mouse and human

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

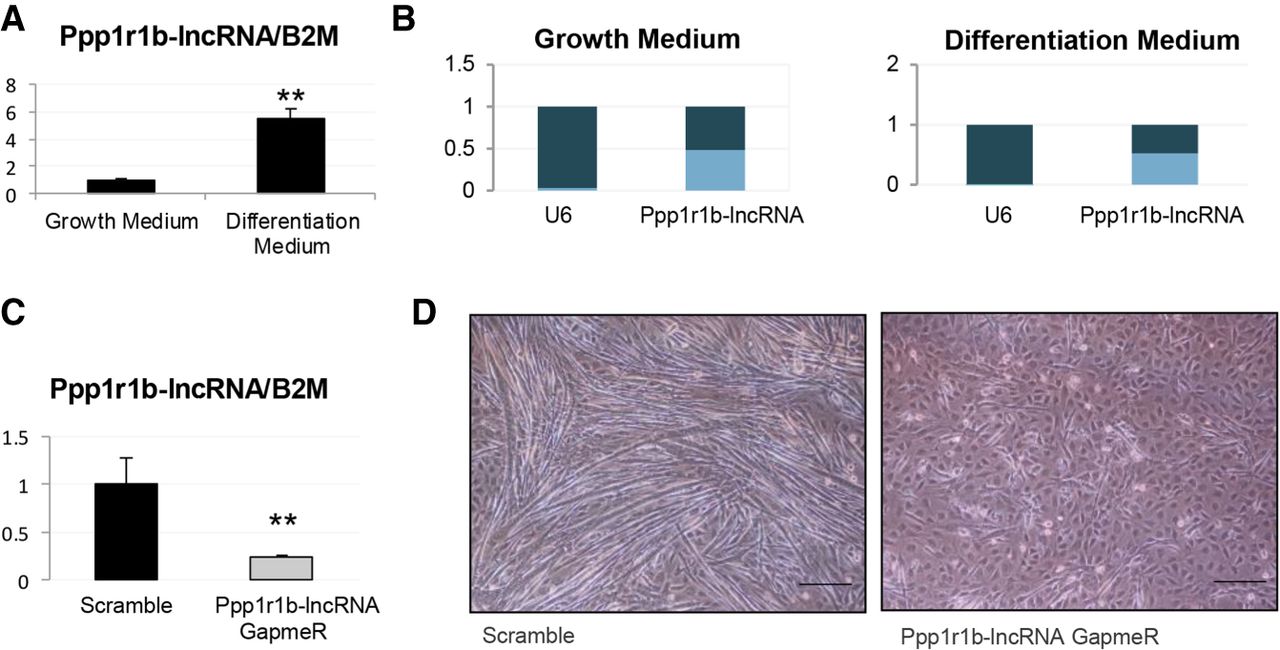

FIGURE 1.
FIGURE 1.

Ppp1r1b-lncRNA is induced during myogenesis and regulates C2C12 myoblast differentiation. (A,C) Quantitative real-time PCR analysis of Ppp1r1b-lncRNA expression after 2 d of differentiation (A) and GapmeR treatment (C). (B) Subcellular localization of Ppp1r1b-lncRNA in myoblasts. U6 RNA was used as a nuclear location control. (D) Light microscope images depict the morphology of C2C12 cells after 2 d of differentiation and Ppp1r1b-GapmeR, or Scramble, treatment. Scale bar, 200 µm. N = 4 biological replicates per condition; error bars, standard error of the mean; (**) P < 0.01.
