Hypoxia influences polysome distribution of human ribosomal protein S12 and alternative splicing of ribosomal protein mRNAs

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 4.
FIGURE 4.

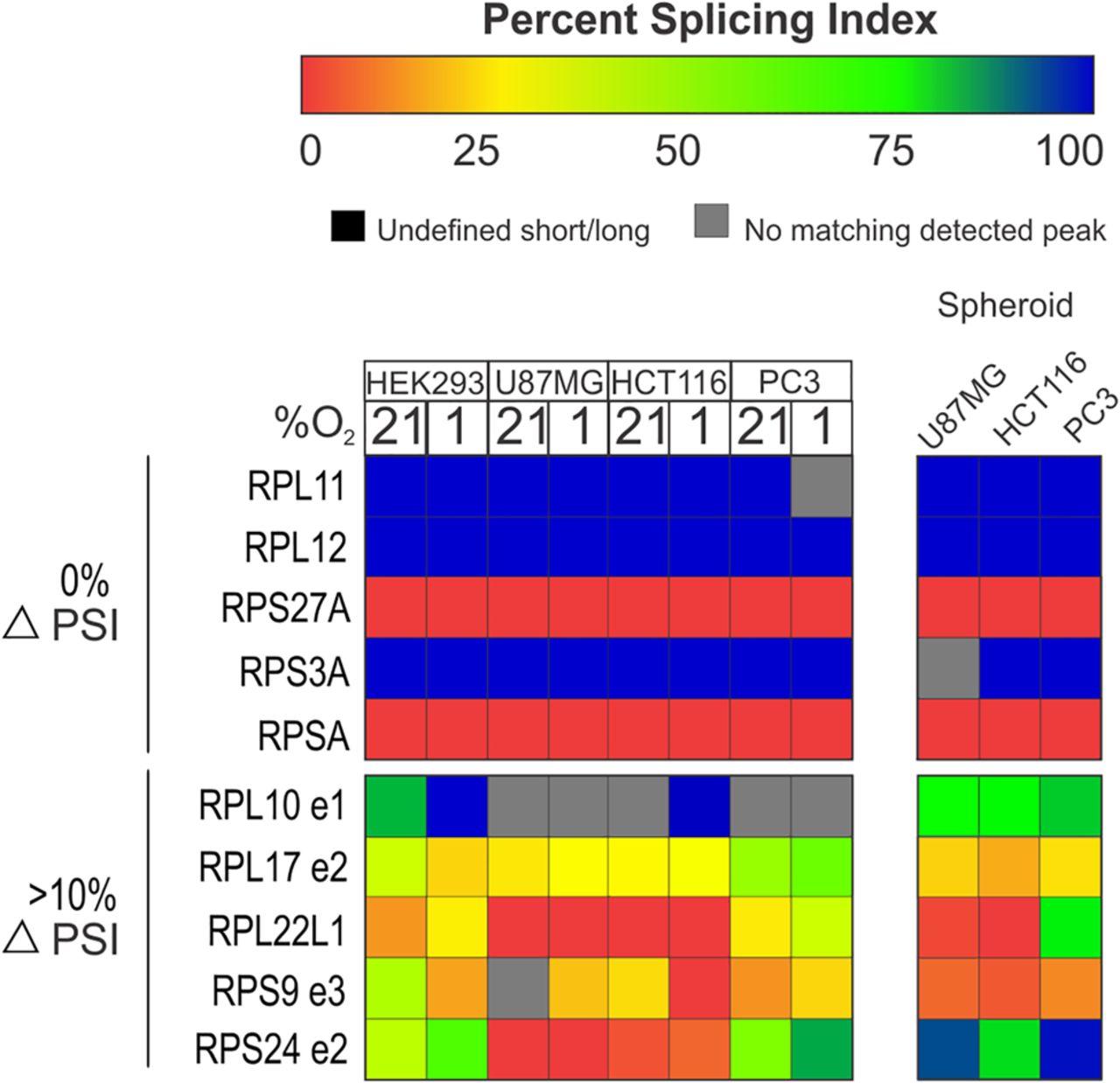

Alternative splicing events within ribosomal protein mRNAs were measured in cancer cell lines and their spheroids. Ten alternative splicing events were chosen based on ΔPSI values from Figure 3 of HEK293 cells: Five ASEs with ΔPSI = 0% and five ASEs with ΔPSI ≥ 10% were measured in three cancer cell lines in 21% O2, 1% O2, and spheroids. See Supplemental Material source data file for Figure 4.

This Article

  1. Published in Advance January 7, 2020, doi: 10.1261/rna.070318.119 RNA 26: 361-371
