Crystal structures of an unmodified bacterial tRNA reveal intrinsic structural flexibility and plasticity as general properties of unbound tRNAs

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

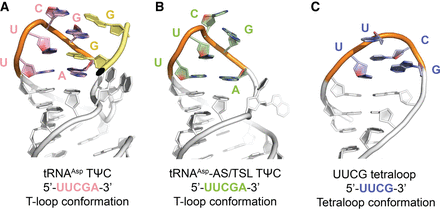

FIGURE 5.
FIGURE 5.

Residues comprising the E. coli tRNAAsp TΨC loop exhibit a T-loop structural fold in a context-independent manner. (A) TΨC loop in the crystal structure of full-length E. coli tRNAAsp assumes the canonical T-loop conformation while engaging in tertiary interactions with D loop residues (yellow) acting as intercalating and stacked nucleobases. (B) TΨC loop in the crystal structure of E. coli tRNAAsp-AS/TSL reveals a T-loop conformation, despite the absence of the D loop interactions, and not a UUCG tetraloop conformation (illustrated in C), as could be expected from sequence analysis.

This Article

  1. RNA 26: 278-289
