Deep sequencing of tRNA's 3′-termini sheds light on CCA-tail integrity and maturation

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

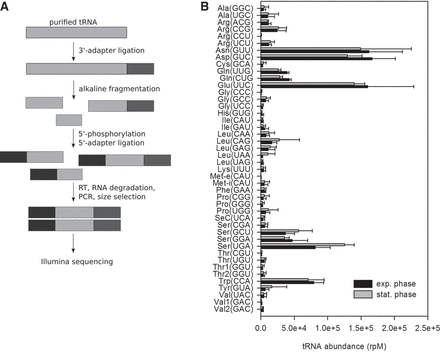

FIGURE 1.
FIGURE 1.

Sequencing 3′-portions of tRNA avoids biases derived from secondary structure and posttranscriptional modifications. (A) Scheme of library preparation for deep sequencing. (B) tRNA sequencing reads from wt cells in an exponential and stationary growth phase. Data is represented as means ± SD (n = 3).

This Article

  1. Published in Advance November 12, 2019, doi: 10.1261/rna.072330.119 RNA 26: 199-208
