Site-specific and substrate-specific control of accurate mRNA editing by a helicase complex in trypanosomes

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

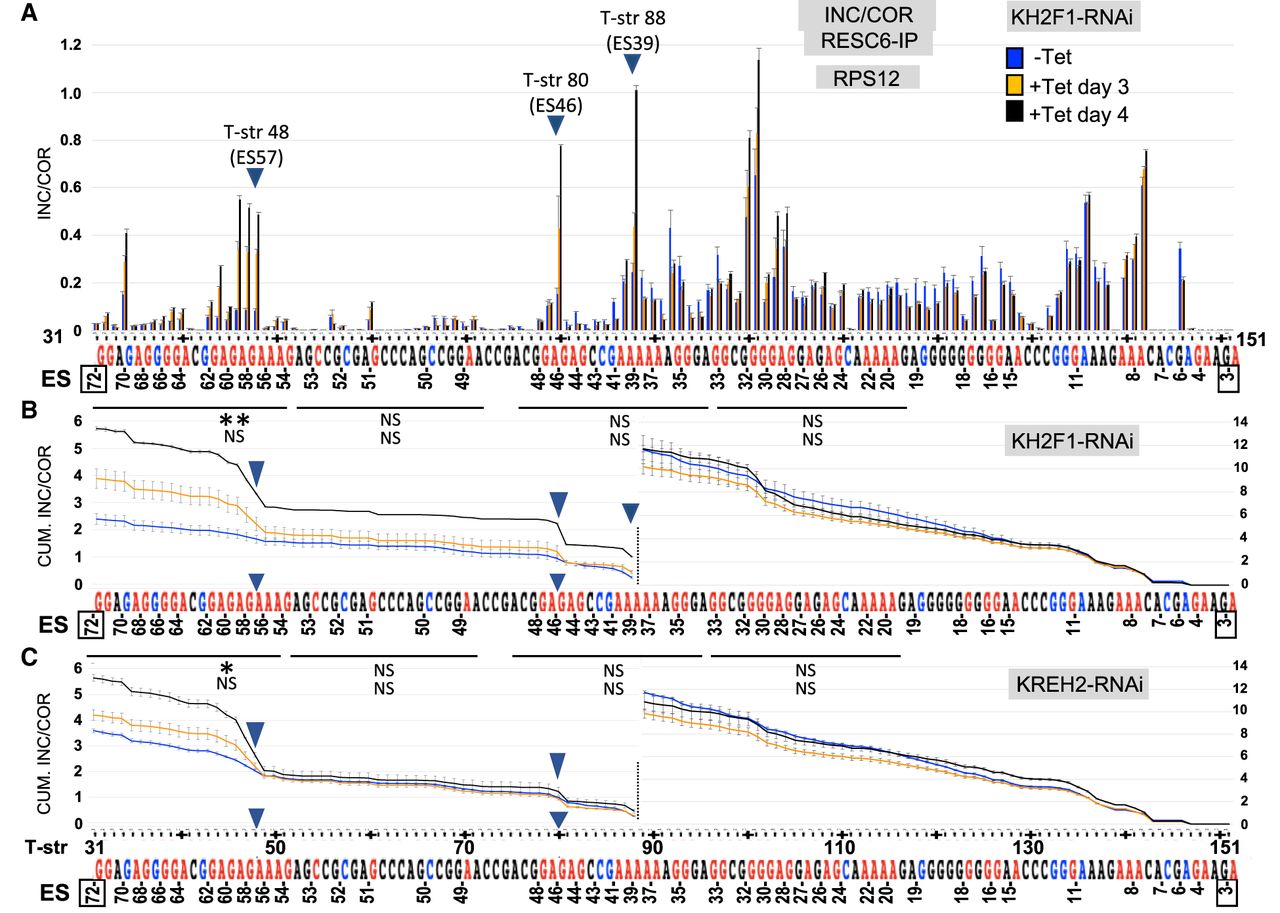

FIGURE 5.
FIGURE 5.

RNA editing accuracy in RESC6-IPs upon RNAi of REH2C proteins: (A) Site-by-site, and (B,C) cumulative Inc/Cor in RPS12 as in Figure 3. KH2F1–RNAi (A,B) and KREH2–RNAi (C). Values and error bars reflect mean of n = 2 +SD independent biological replicates. Some error bars are tiny. Sliding window analyses are included comparing −Tet to +Tet day 4 (top tier) or +Tet day 3 (bottom tier).

This Article

  1. Published in Advance September 1, 2020, doi: 10.1261/rna.076513.120 RNA 26: 1862-1881
