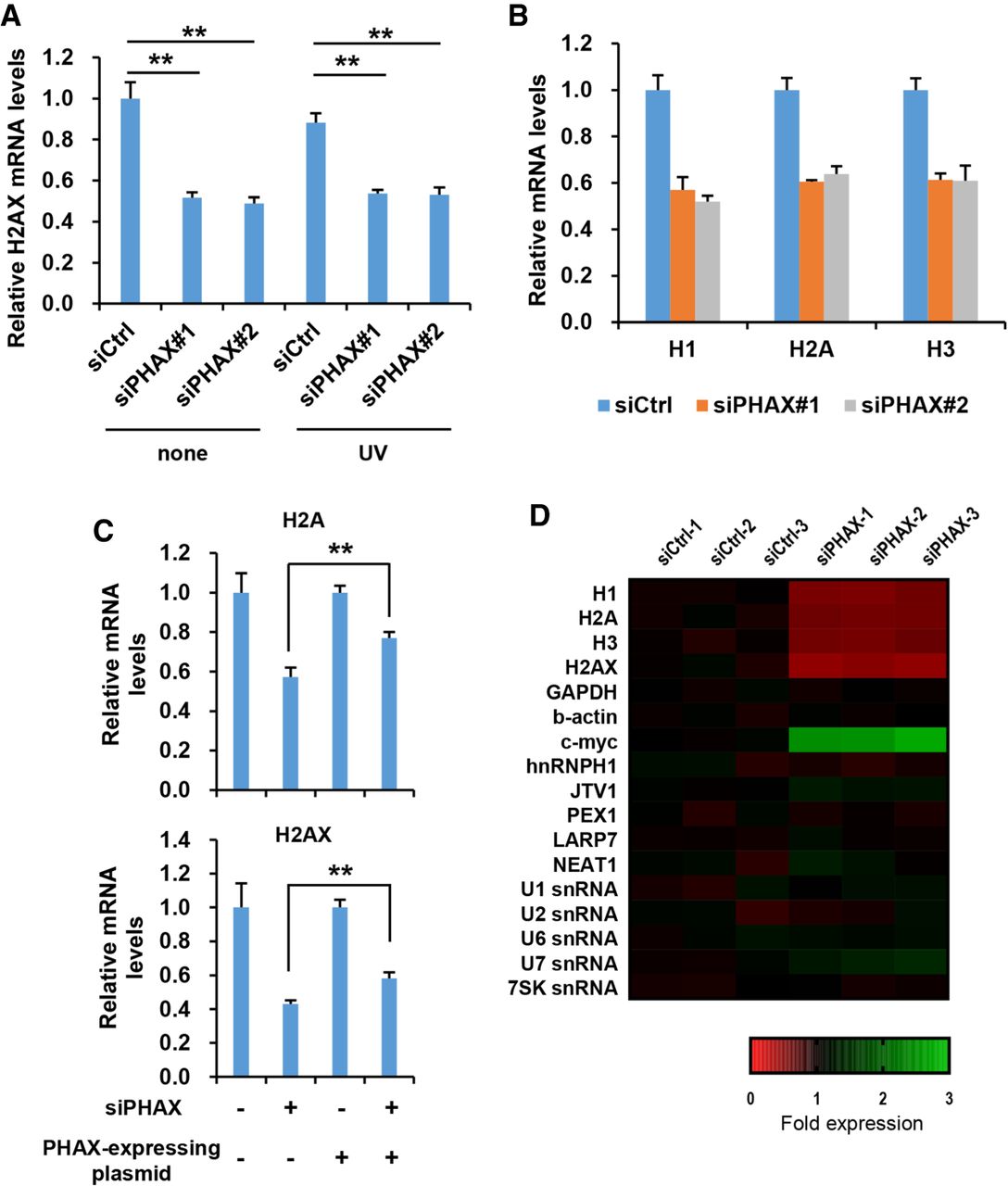

Reduction in H2AX mRNA levels by knockdown of PHAX. (A) U2OS cells were transfected with the indicated siRNAs, followed by UV-irradiation (20 J/m2). After 6-h incubation, the indicated mRNA levels were determined by qRT-PCR analysis. (B) U2OS cells were transfected with the indicated siRNAs. After 48-h incubation, the indicated mRNA levels were similarly determined. (C) U2OS cells were cotransfected with siPHAX and a PHAX-expressing plasmid. After 48-h incubation, the indicated mRNA levels were similarly determined. (D) The indicated mRNA levels in siPHAX-transfected cells were determined by qRT-PCR analysis and were expressed in the form of a heat map. Data are the means ± S.D. (n = 3–4). (**) P < 0.001.
