Telomeric small RNAs in the genus Caenorhabditis

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

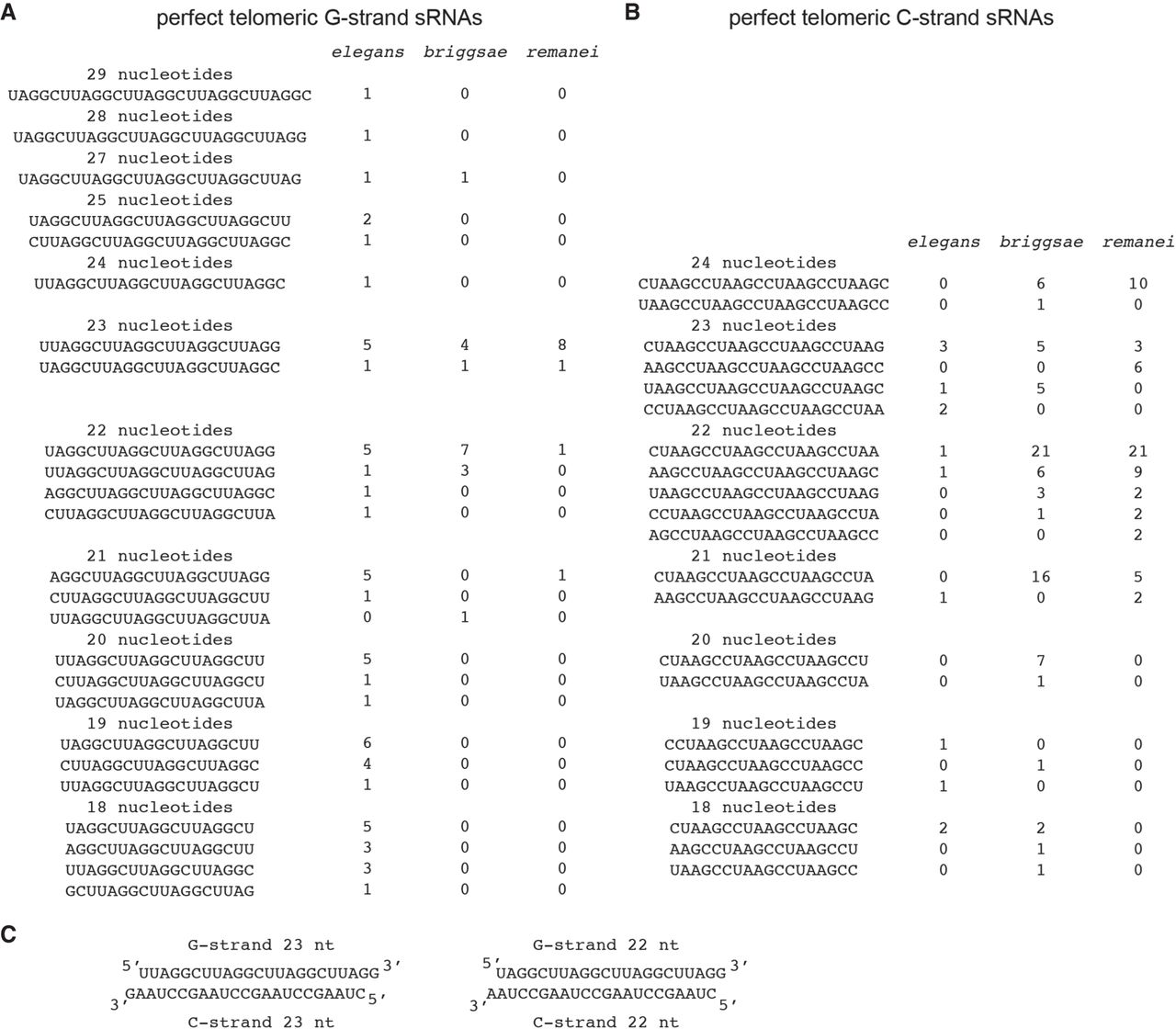

FIGURE 6.
FIGURE 6.

Perfect telomeric small RNAs of the genus Caenorhabditis. Total observed G-rich (A) and C-rich (B) telomeric small RNAs from RNA-seq and IP data sets. (C) Abundant telomeric sRNAs can anneal to form duplexes.

This Article

  1. Published in Advance June 25, 2019, doi: 10.1261/rna.071324.119 RNA 25: 1061-1077
