Mechanism and physiological significance of autoregulation of the Escherichia coli hfq gene

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

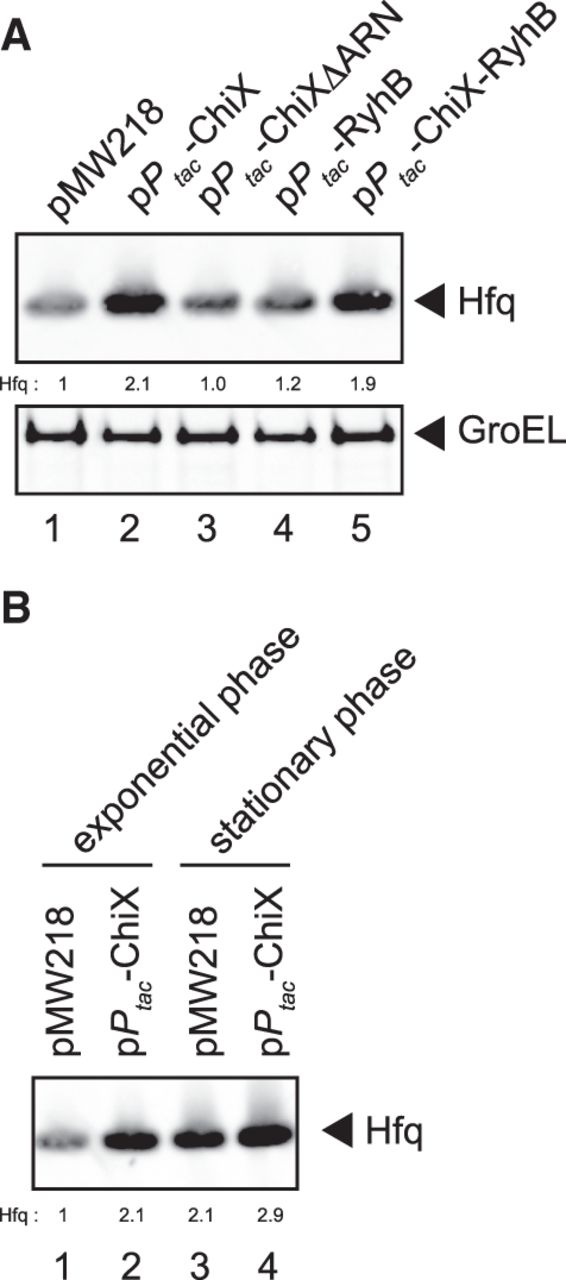

FIGURE 4.
FIGURE 4.

Effect of overexpression of sRNAs on Hfq expression in wild-type cells. (A) IT1568 cells harboring indicated plasmids were grown to A600 = ∼0.3. Protein samples equivalent to 0.025 or 0.0025 A600 units were subjected to western blotting using anti-Hfq polyclonal antibodies or anti-GroEL polyclonal antibodies, respectively. Relative Hfq levels are calculated with the pMW218 sample set to one. (B) IT1568 cells harboring indicated plasmids were grown to A600 = ∼0.3, and to A600 = ∼1.9. Protein samples equivalent to 0.025 A600 units were subjected to western blotting using anti-Hfq polyclonal antibodies. Relative Hfq levels are calculated, with the pMW218 sample at exponential phase set to one.

This Article

  1. RNA 25: 264-276
