Roles of specific aminoglycoside–ribosome interactions in the inhibition of translation

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

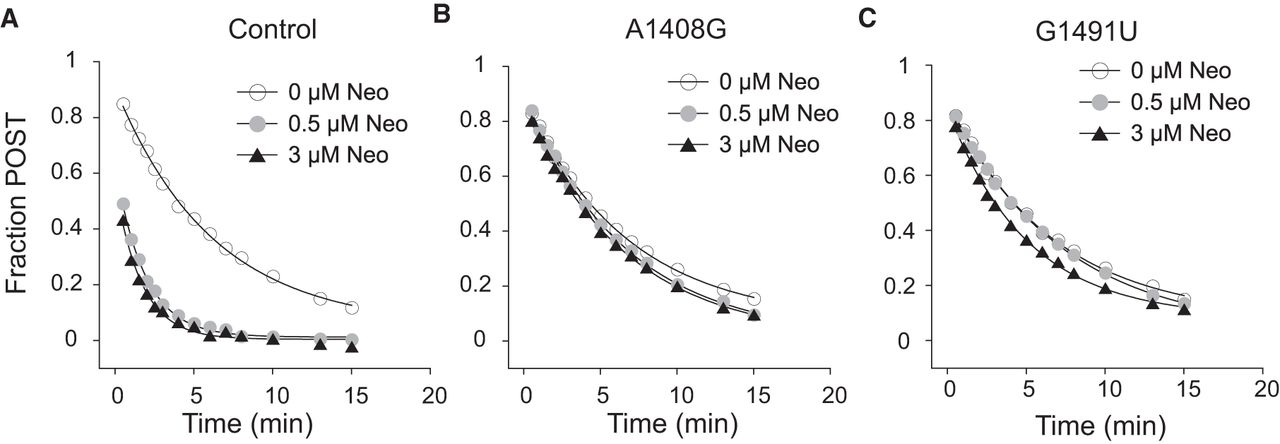

FIGURE 4.
FIGURE 4.

The ability of neomycin to stimulate spontaneous reverse translocation depends on the h44 site. Reverse translocation in control (A), A1408G (B), or G1491U (C) ribosomes was measured in the absence and presence of Neo (as indicated). The fraction of ribosomes in the POST state was plotted versus time, and the data were fit to a single exponential function to obtain the observed rate at 0, 0.5, and 3 µM Neo (respectively): Control, kobs = 0.16, 0.54, 0.60 min−1; A1408G, kobs = 0.15, 0.15, 0.15 min−1; G1491U, kobs = 0.15, 0.14, 0.20 min−1.
