Mutually exclusive amino acid residues of L13a are responsible for its ribosomal incorporation and translational silencing leading to resolution of inflammation

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

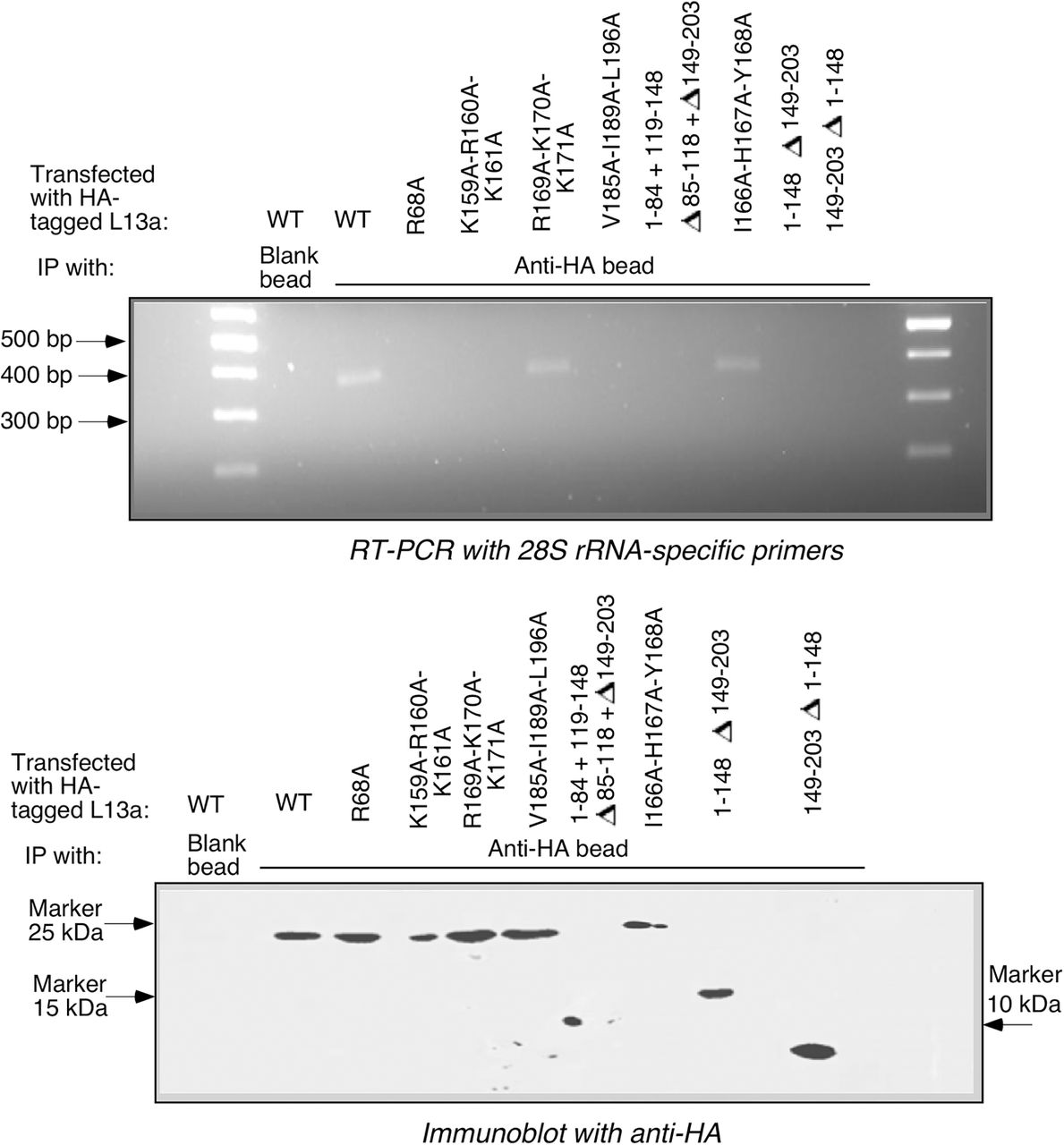

FIGURE 3.
FIGURE 3.

Association of L13a and its mutant variants with 28S rRNA. Lysates prepared from HEK 293T cells expressing HA-tagged L13a (WT or mutant as indicated above each lane) were used for immunoprecipitation with anti-HA-coated agarose beads (or nonantibody-coated blank beads as a control, first lane from left). (Top) Total RNA was extracted from the immunoprecipitates and analyzed by RT-PCR with primers specific for 28S rRNA. RT-PCR products were visualized on an ethidium bromide-stained agarose gel. (Bottom) Equal volumes of the immunoprecipitate from each reaction were run on an SDS-PAGE gel and immunoblotted with anti-HA antibody to confirm the presence of equivalent amounts of HA-tagged protein.
