Dynamic association of human mRNP proteins with mitochondrial tRNAs in the cytosol

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

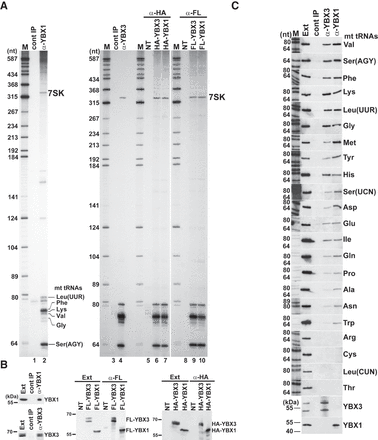

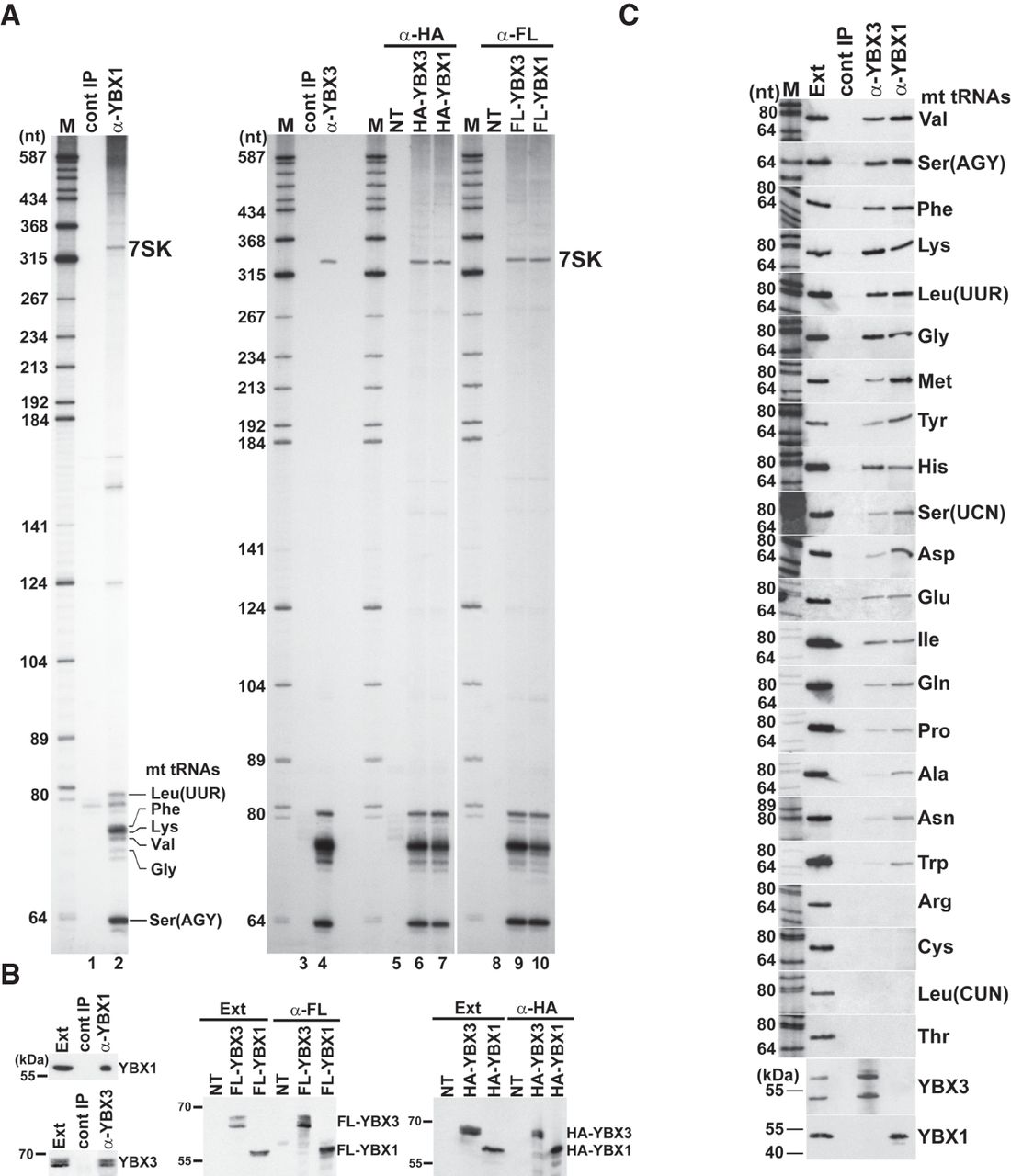

FIGURE 1.
FIGURE 1.

Human YBX1 and YBX3 interact with mt tRNAs. (A) Small RNAs associated with YBX1 and YBX3. HeLa cellular RNAs coimmunopurified with endogenous or transiently expressed HA- and Flag-tagged YBX1 and YBX3 were 3′ end-labeled and analyzed on 6% sequencing gels. Control IPs with nonimmune sera (cont IP) or from nontransfected cell extracts (NT) are shown. The 7SK snRNA and YBX1-associated mt tRNAs identified by direct chemical sequencing are indicated. (Lanes M) Size markers in nucleotides. (B) Western blot analyses. IP of HeLa endogenous and transiently expressed epitope-tagged YBX1 and YBX3 was confirmed by YBX1- and YBX3-specific antibodies. (Ext) HeLa cell extracts. Positions of marker proteins are indicated. (C) Copurification of HeLa mt tRNAs with YBX1 and YBX3 was measured by northern blot analyses with sequence-specific oligonucleotide probes. IP of YBX1 and YBX3 was confirmed by western blotting. (Ext) HeLa cell extract (50× dilution). (Lane M) Size markers.

This Article

  1. RNA 24: 1706-1720
