Combinatorial interplay of RNA-binding proteins tunes levels of mitochondrial mRNA in trypanosomes

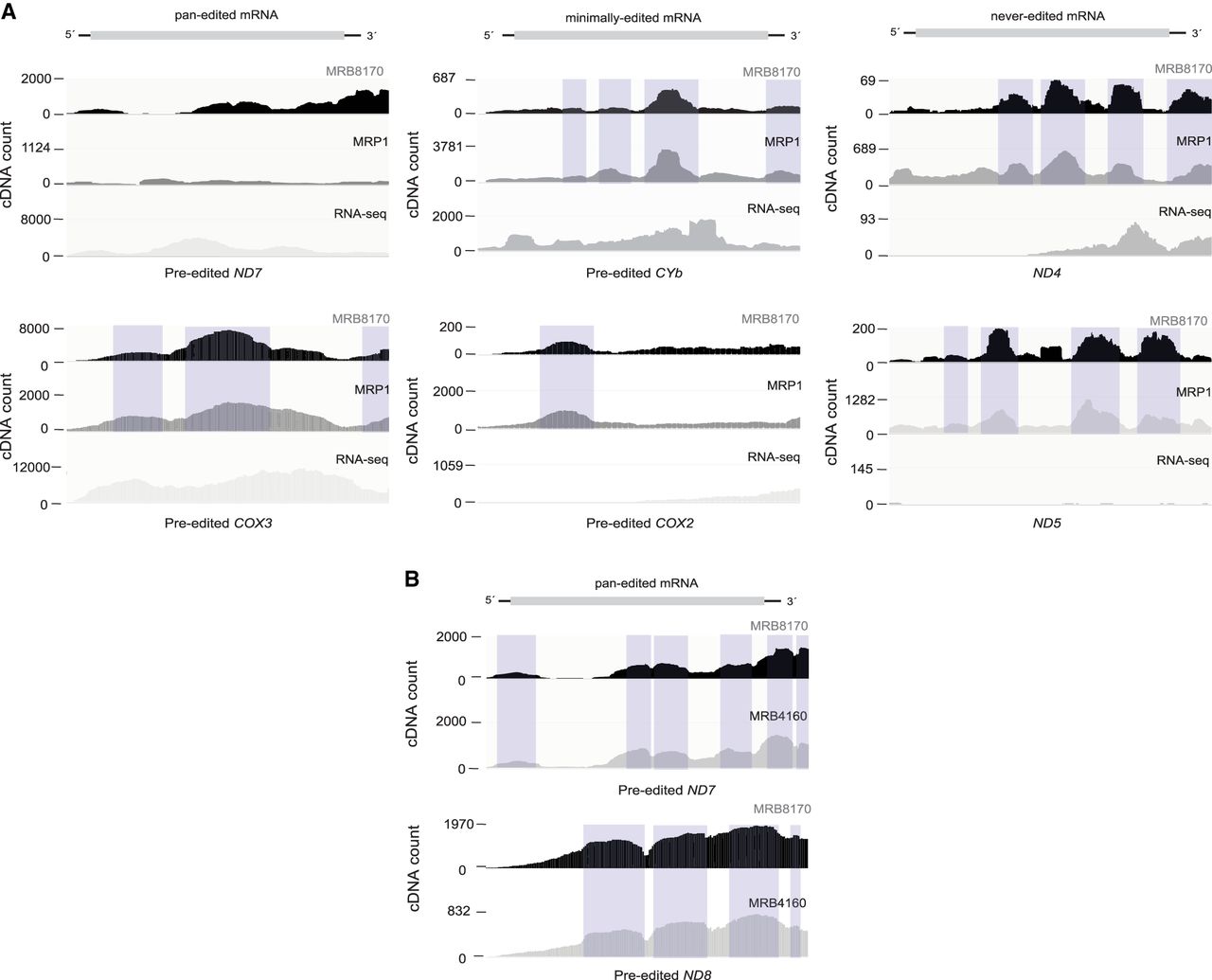

RNA crosslinked peak profile comparison between MRP1- and MRB8170- associated mRNAs. (A) Genomic browser snapshots of MRP1 and MRB8170, as well as RNA-seq on the pre-edited forms of ND7 and COX3 (pan-edited), CYb and COX2 (minimally edited), and ND4 and ND5 (never-edited) mRNAs. The shaded peaks show the clustering of RNA crosslinked peaks at similar positions over mRNAs in MRB8170 and MRP1. (B) Genomic browser snapshots of MRB8170 and MRB4160, as well as RNA-seq on the pre-edited forms of ND7 and ND8 (pan-edited). The shaded peaks show the clustering of RNA crosslinked peaks at similar positions over mRNAs in MRB8170 and MRB4160.
