Dynamic temperature-sensitive A-to-I RNA editing in the brain of a heterothermic mammal during hibernation

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

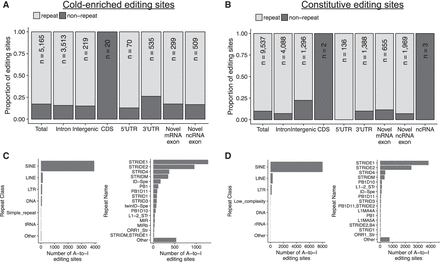

FIGURE 4.
FIGURE 4.

Editing sites are predominantly located in SINE elements in intronic sequences. (A) Genomic distribution of cold-enriched editing sites. Annotations were derived using both the Ensembl 85 annotation and the novel transcriptome built in this study. (B) Distribution of constitutively edited sites. (C) Number of cold-enriched editing sites within repeat classes and repeat families defined by repeatMasker annotations. (D) Repeat classification for constitutively edited sites.

This Article

  1. RNA 24: 1481-1495
