MCTBI: a web server for predicting metal ion effects in RNA structures

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 5.
FIGURE 5.

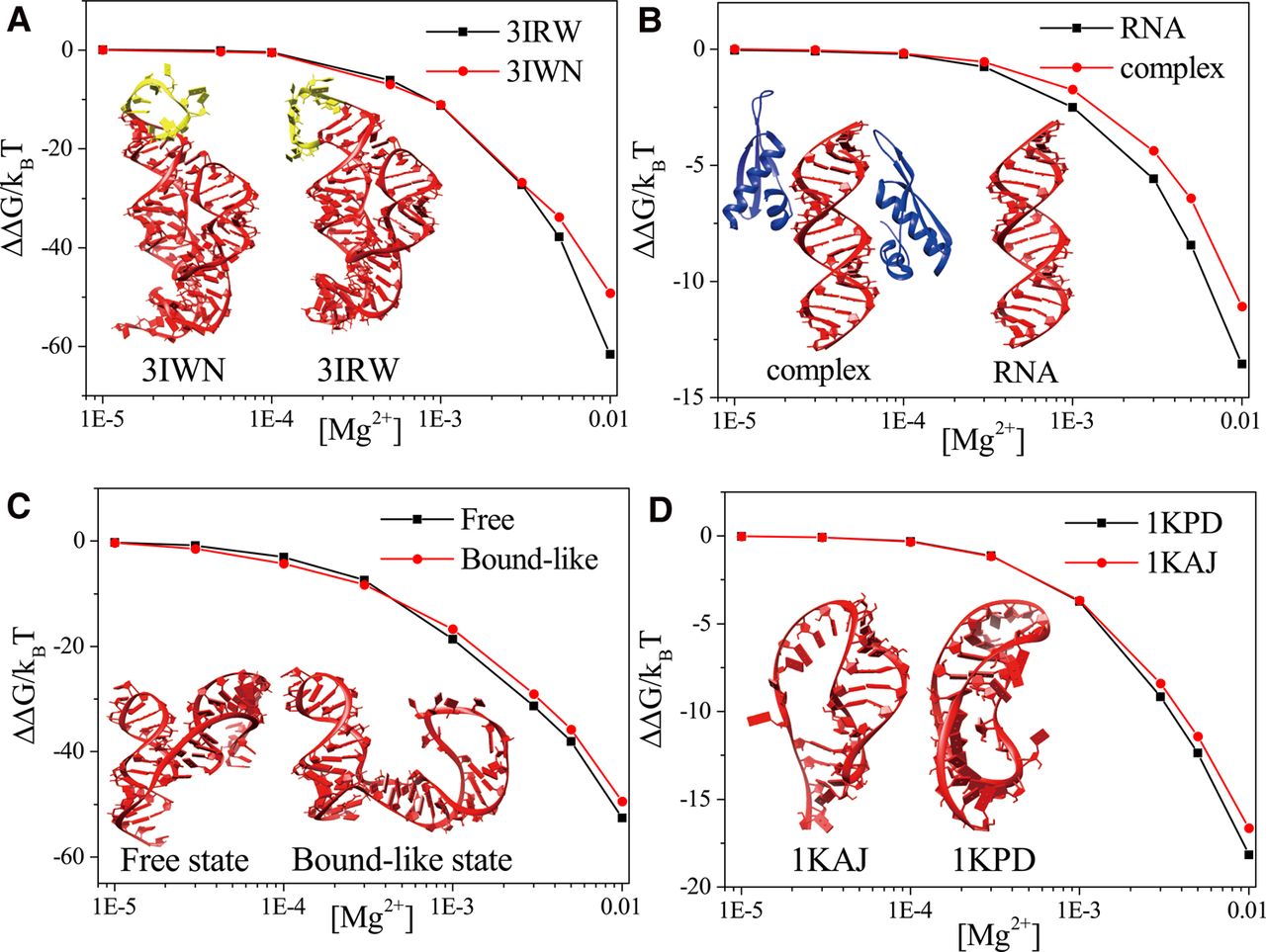

The [Mg2+]-dependence Mg2+-induced free energy for (A) two structures of the c-di-GMP riboswitch at [Na+] = 0.3 M, (B) the dsRNA-NF90 complex and dsRNA alone at [Na+] = 50 mM, (C) the free state and the bound-like state of the glutamine riboswitch at [K+] = 100 mM, and (D) the RNA pseudoknot and its mutant at [Na+] = 50 mM. The temperature in all the calculations is set at 25°C. The insets show the corresponding RNA structures.
