Comparison of SHAPE reagents for mapping RNA structures inside living cells

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

FIGURE 1.
FIGURE 1.

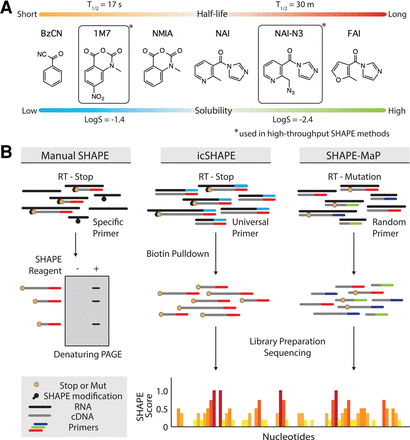

Overview of SHAPE reagents and experimental strategies. (A) Graphic representing the relative half-life and solubilities of SHAPE reagents, which are used for a variety of RNA structure probing methods, including icSHAPE and SHAPE-MaP. Actual structures are shown. (B) Schematic of various methods that take advantage of SHAPE electrophile chemistry. Key steps and differences between each method are shown in the figure.
