The N-terminal extension of yeast ribosomal protein L8 is involved in two major remodeling events during late nuclear stages of 60S ribosomal subunit assembly

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

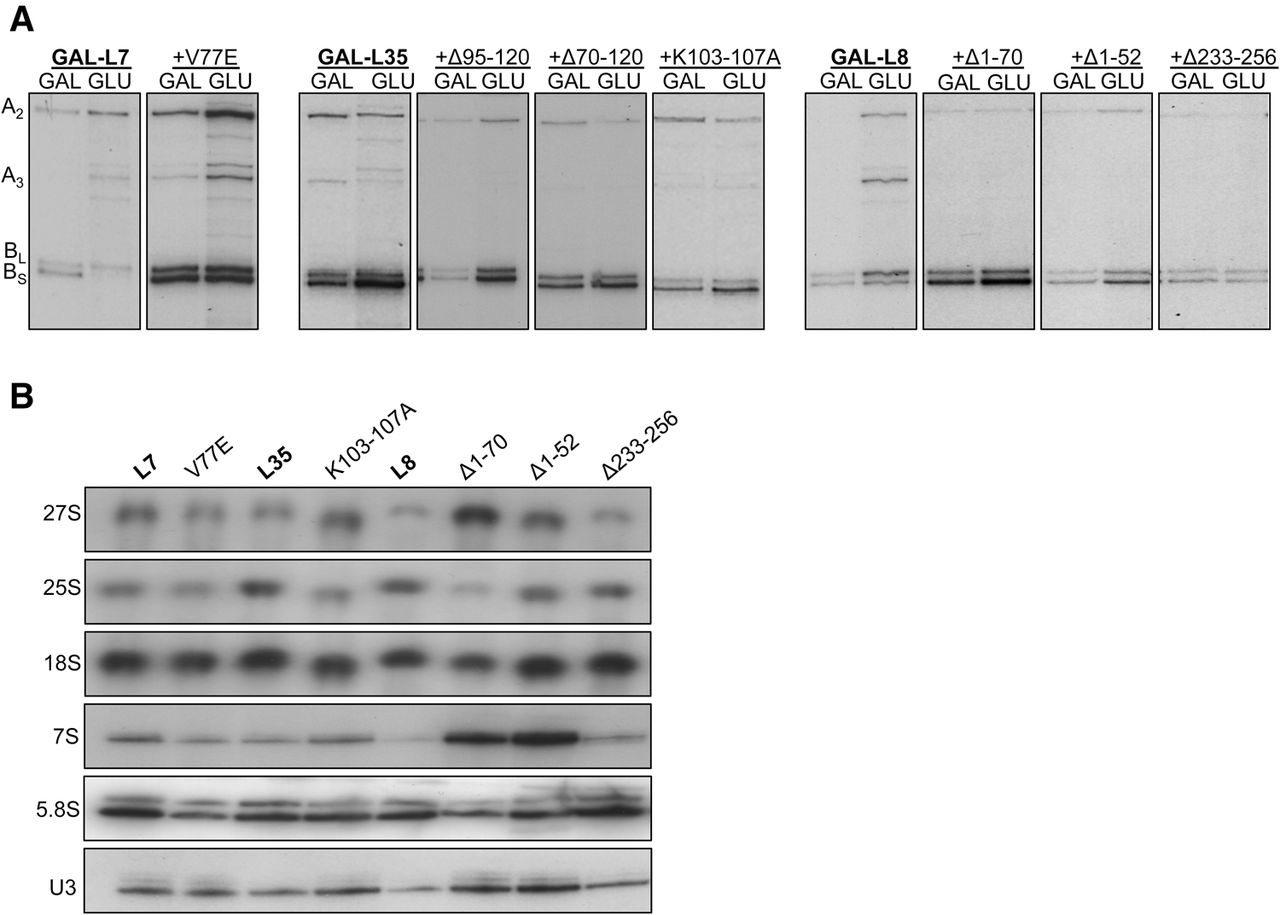

FIGURE 3.
FIGURE 3.

(A) Pre-RNA processing defects in r-protein extension mutants. The 27SA2, 27SA3, 27SBS, 27SBL pre-rRNAs were detected by primer extension and used as representatives of different steps of pre-rRNA processing. (B) The steady-state levels of pre-rRNAs (27S, 7S) and mature rRNAs (25S, 18S, and 5.8S) were tested by Northern blots. U3 snoRNA was used as the loading control.

This Article

  1. Published in Advance July 7, 2016, doi: 10.1261/rna.055798.115 RNA 22: 1386-1399
