Transcriptomic comparison of Drosophila snRNP biogenesis mutants reveals mutant-specific changes in pre-mRNA processing: implications for spinal muscular atrophy

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

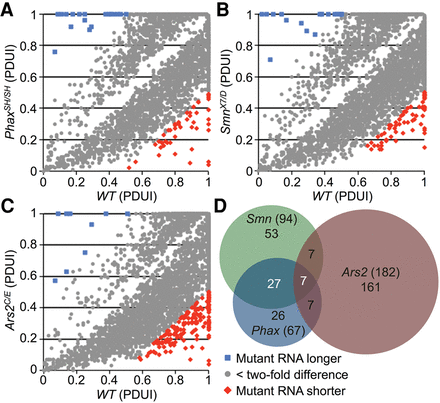

FIGURE 3.
FIGURE 3.

mRNA length changes in snRNP biogenesis mutants. Pairwise comparison of significant (false discovery rate adjusted P-value <0.05) differences in mRNA length between WT and PhaxSH/SH (A); WT and SmnX7/D (B); and WT and Ars2C/E (C). RNA length differences were extracted from mapped RNA-seq read files by the DaPars linear regression algorithm (see text). Percentage of distal poly(A) site usage index = PDUI. (D) Venn diagram of RNA length differences in snRNP biogenesis mutants labeled as in Figure 2.

This Article

  1. RNA 22: 1215-1227
