Cross-backbone templating; ribodinucleotides made on poly(C)

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

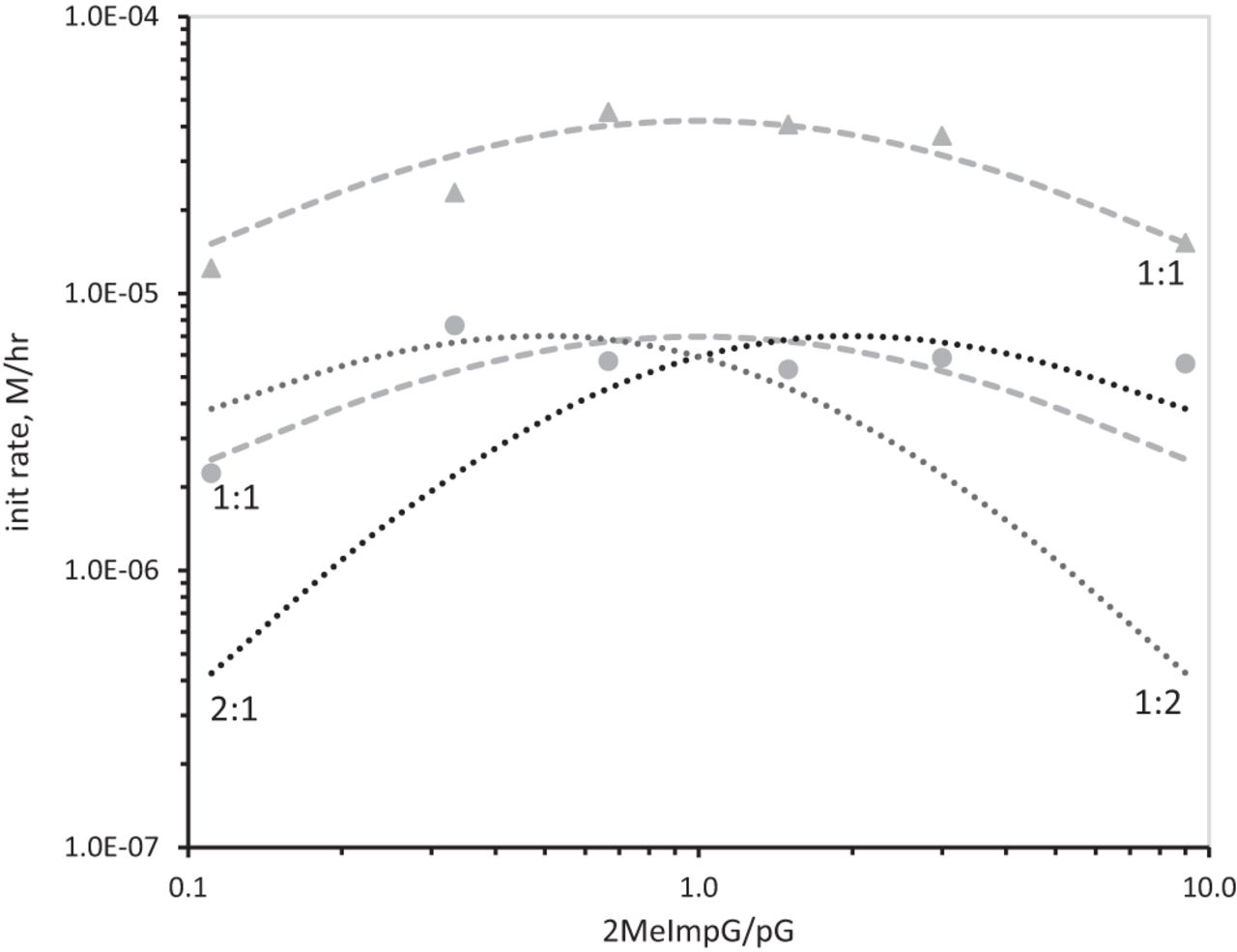

FIGURE 4.
FIGURE 4.

Initial rates of GppG synthesis, at different ratios of substrate nucleotides, with and without poly(C). Triangles indicate data, poly(C) added; circles denote data without polymer. Dashed lines are calculated, matching the overall velocity and assuming rate ∝ [2MeImpG]*[pG] (curves marked 1:1). Dotted lines are calculated, matching overall velocity and assuming rate ∝ [2MeImpG]2*[pG] (curve marked 2:1), or rate ∝ [2MeImpG]*[pG]2 (curve marked 1:2).

This Article

  1. Published in Advance January 12, 2016, doi: 10.1261/rna.054866.115 RNA 22: 397-407
