Control of Saccharomyces cerevisiae pre-tRNA processing by environmental conditions

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

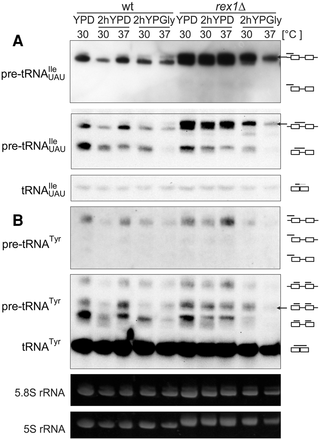

FIGURE 3.
FIGURE 3.

Species-specific tRNA processing intermediates under stress conditions: tRNAUAUIle contains the 5′ leader sequence whereas the aberrant tRNATyr species is processed at the 5′ end. Wild-type and rex1Δ mutant strains were grown in YPD at 30°C and then shifted for 2 h to 37°C and/or YPGly. RNA was isolated and analyzed by hybridization with probes specific to 5′ leaders of both tRNAUAUIle genes (A). and tRNATyr tY(GUA)D (B). Forms of tRNA precursors that accumulate under stress conditions are indicated by solid arrows. Hybridization with other specific probes recognizing mature and pre-tRNAs were employed as controls. The bottom panels present ethidium bromide–stained 5.8S and 5S rRNA used as the loading controls.
