Structure–function analysis and genetic interactions of the Yhc1, SmD3, SmB, and Snp1 subunits of yeast U1 snRNP and genetic interactions of SmD3 with U2 snRNP subunit Lea1

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

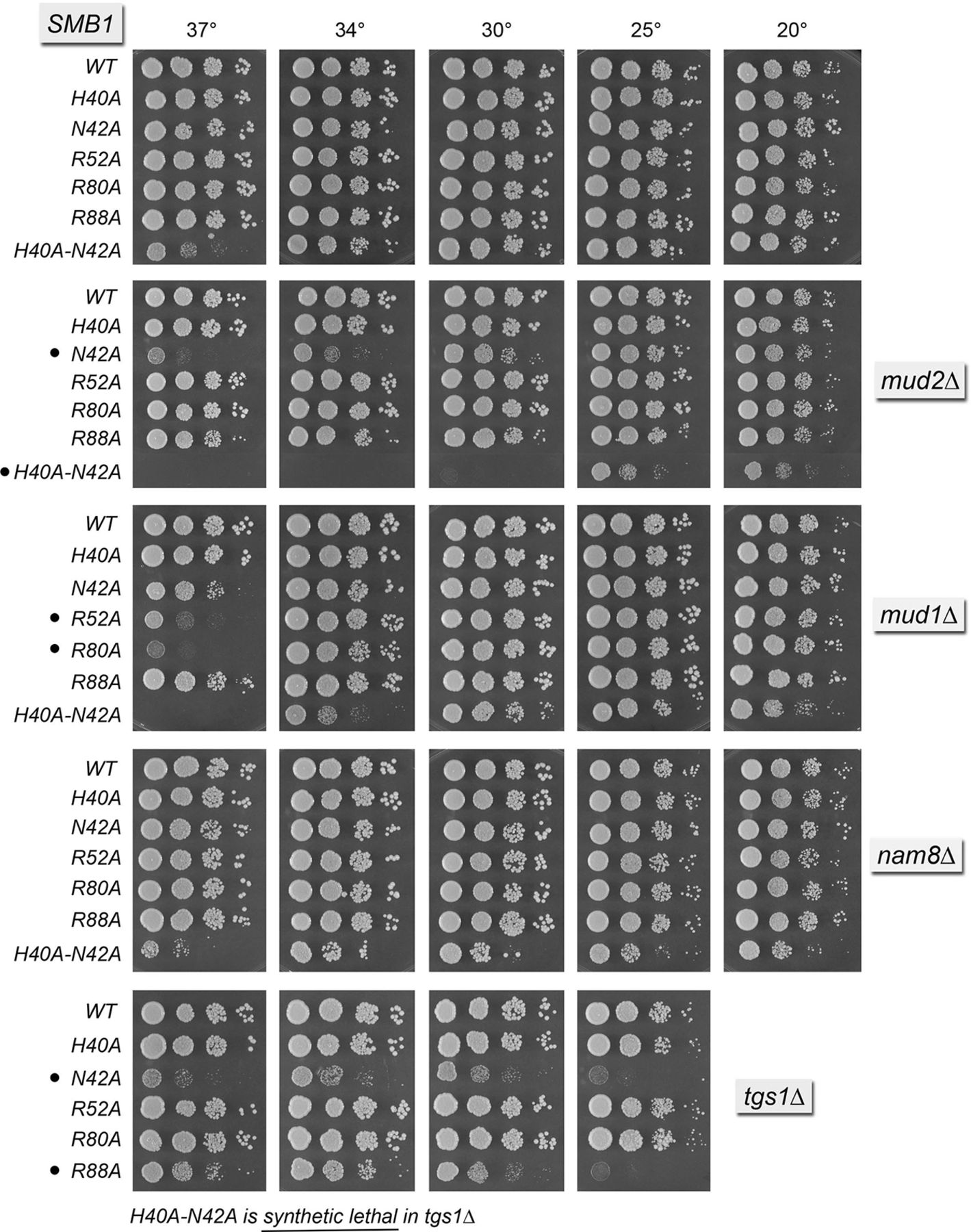

FIGURE 6.
FIGURE 6.

Genetic interactions of SmB-Ala mutants. Yeast smb1▵ strains bearing the indicated SMB1-Ala allele on a CEN HIS3 plasmid in an otherwise wild-type (top panel), mud2▵, mud1▵, nam8▵, or tgs1▵ background as indicated were spot-tested for growth on YPD agar at the temperatures specified. Synthetic growth defects are denoted by •.

This Article

  1. Published in Advance April 20, 2015, doi: 10.1261/rna.050583.115 RNA 21: 1173-1186
